BioPharm Tri-Clamp Short Outlet Tee

Tri-Clamp Short Outlet Tee – Stainless Steel – 7MPS

Price range: $92.95 through $1,713.85

  • Available in 304 and 316L
  • 3-A Sanitary Standard

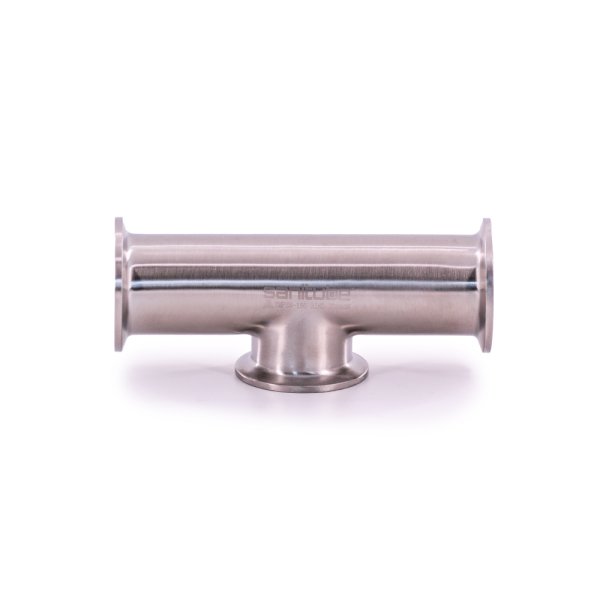

Tri-Clamp Short Outlet Tees have a straight run with a right-angle branch that is shorter than a standard tee. Connection to the line is secured via clamp.

Tri-Clamp Measurement Guide
Product Specifications
SKU: 7MPS Categories: , ,
Tri-Clamp Measurement Guide
Size (Tube OD) Part Number Dimensions
304L 316L A B C
1/2″ — 7MPS6-050 2.375 4.750 0.875
3/4″ — 7MPS6-075 2.750 5.500 1.000
1   “ 7MPS4-100 7MPS6-100 2.375 4.750 1.125
1-1/2″ 7MPS4-150 7MPS6-150 2.750 5.500 1.375
2   “ 7MPS4-200 7MPS6-200 3.500 7.000 1.625
2-1/2″ 7MPS4-250 7MPS6-250 3.500 7.000 1.875
3   “ 7MPS4-300 7MPS6-300 3.750 7.500 2.125
4   “ 7MPS4-400 7MPS6-400 4.500 9.000 2.750
6   “ 7MPS4-600 7MPS6-600 6.500 13.000 4.000
8   “ 7MPS4-800 7MPS6-800 7.875 15.750 5.000
Grade

,

Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8"

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
