Tri-Clamp x Schedule 40s Weld Adapter
- Available in 304 and 316L
- Sanitary Grade

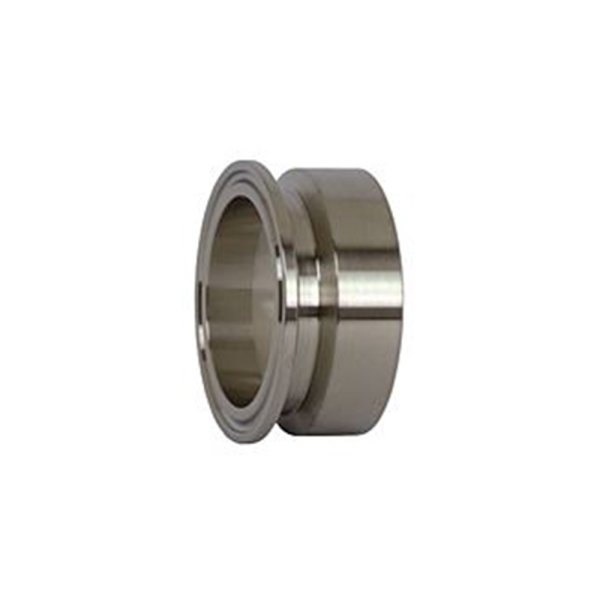

Tri-Clamp x Schedule 40s Weld Adapters are used to connect a Tube OD Tri-Clamp fitting to Schedule 40s pipe via weld.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
You may also like…
| Size (Tube OD) |
Part Number | Dimensions | ||||||
| 304 | 316L | A | B | C | Pipe Wall | |||
| 1" | 19MPZ4-100 | 19MPZ6-100 | 1.125 | 1.049 | 1.315 | 0.133 | ||
| 1-1/2" | 19MPZ4-150 | 19MPZ6-150 | 1.125 | 1.61 | 1.9 | 0.145 | ||
| 2" | 19MPZ4-200 | 19MPZ6-200 | 1.125 | 2.067 | 2.375 | 0.154 | ||
| 2-1/2" | 19MPZ4-250 | 19MPZ6-250 | 1.125 | 2.469 | 2.875 | 0.203 | ||
| 3" | 19MPZ4-300 | 19MPZ6-300 | 1.125 | 3.068 | 3.5 | 0.216 | ||
| 4" | 19MPZ4-400 | 19MPZ6-400 | 1.125 | 4.026 | 4.5 | 0.237 | ||
