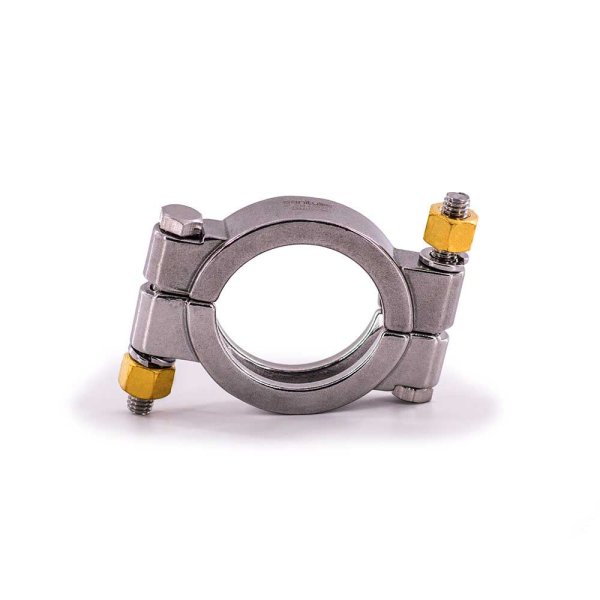

High Pressure Bolted Tri-Clamp
- T304 Stainless Steel Clamp
- Available in 316L Upon Request
- Pressure Rating Assumes Nut Tightened to 25 ft/lbs. of Torque
Used to securely connect two tri-clamp flange ends in higher pressure process lines. A tri-clamp gasket is placed between the two ends to ensure proper connection.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
You may also like…
| Size (Tube OD) | Part Number | Service Pressure Rating at 70°F | Service Pressure Rating at 250°F | Dimensions | ||
| A | ||||||
| 1" | - | 1-1/2" | 13MHP-100-150 | 1500 | 1200 | 2.046 |
| 2 " | 13MHP-200 | 1000 | 800 | 2.578 | ||
| 2-1/2" | 13MHP-250 | 1000 | 800 | 3.110 | ||
| 3 " | 13MHP-300 | 1000 | 800 | 3.640 | ||
| 4 " | 13MHP-400 | 800 | 600 | 4.744 | ||
| 6 " | 13MHP-600 | 300 | 200 | 6.632 | ||
