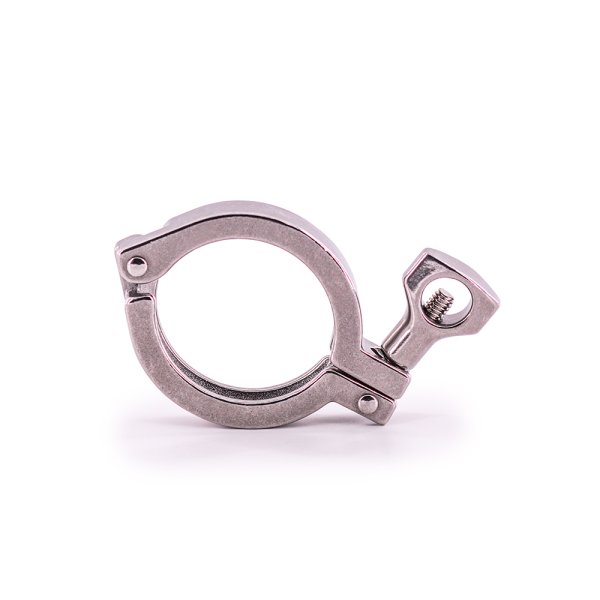

Single Pin Heavy Duty Tri-Clamp
- T304 Stainless Steel Clamp
- Available in 316L Upon Request
- Pressure Rating Assumes Nut Tightened to 25 ft/lbs. of Torque
Used to securely connect two tri-clamp flange ends. A tri-clamp gasket is placed between the two ends to ensure proper connection.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
You may also like…
| Size (Tube OD) |
Part Number | Service Pressure Rating at 70°F | Service Pressure Rating at 250°F | Dimensions | ||
| A | ||||||
| 1/2" | - | 3/4" | 13MHHM-050-075 | 1,500 | 1,200 | 1.062 |
| 1 " | - | 1-1/2" | 13MHHM-100-150 | 500 | 300 | 2.122 |
| 2 " | 13MHHM-200 | 450 | 250 | 2.654 | ||
| 2-1/2" | 13MHHM-250 | 400 | 200 | 3.185 | ||
| 3 " | 13MHHM-300 | 350 | 175 | 3.717 | ||
| 4 " | 13MHHM-400 | 300 | 150 | 4.820 | ||
| 6 " | 13MHHM-600 | 150 | 75 | 6.695 | ||
| 8 " | 13MHHM-800 | 100 | 50 | 8.695 | ||
| 10 " | 13MHHM-1000 | 75 | 40 | 10.695 | ||
| 12 " | 13MHHM-1200 | 50 | 25 | 12.695 | ||
