Tri-Clamp Automatic Weld Ferrule
- Available in 316L
- 3-A Sanitary Standard
- For Use in Orbital Welding
Tri-Clamp Automatic Weld Ferrules are sanitary grade with long tangents that are made for use with orbital welding equipment.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |

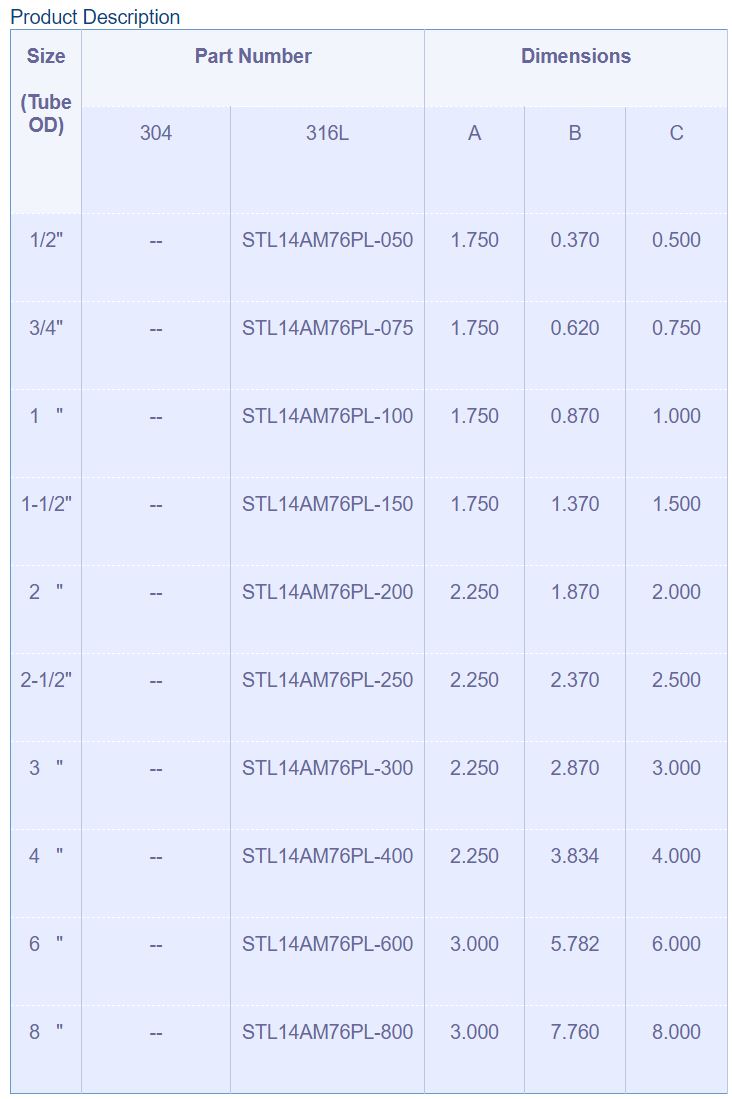

Tri-Clamp Fitting Guide
| Size (Tube OD) |
Part Number | Dimensions | |||||
| 304 | 316L | A | B | C | |||
| 1/2" | -- | STL14AM76PL-050 | 1.750 | 0.370 | 0.500 | ||
| 3/4" | -- | STL14AM76PL-075 | 1.750 | 0.620 | 0.750 | ||
| 1 " | -- | STL14AM76PL-100 | 1.750 | 0.870 | 1.000 | ||
| 1-1/2" | -- | STL14AM76PL-150 | 1.750 | 1.370 | 1.500 | ||
| 2 " | -- | STL14AM76PL-200 | 2.250 | 1.870 | 2.000 | ||
| 2-1/2" | -- | STL14AM76PL-250 | 2.250 | 2.370 | 2.500 | ||
| 3 " | -- | STL14AM76PL-300 | 2.250 | 2.870 | 3.000 | ||
| 4 " | -- | STL14AM76PL-400 | 2.250 | 3.834 | 4.000 | ||
| 6 " | -- | STL14AM76PL-600 | 3.000 | 5.782 | 6.000 | ||
| 8 " | -- | STL14AM76PL-800 | 3.000 | 7.760 | 8.000 | ||
