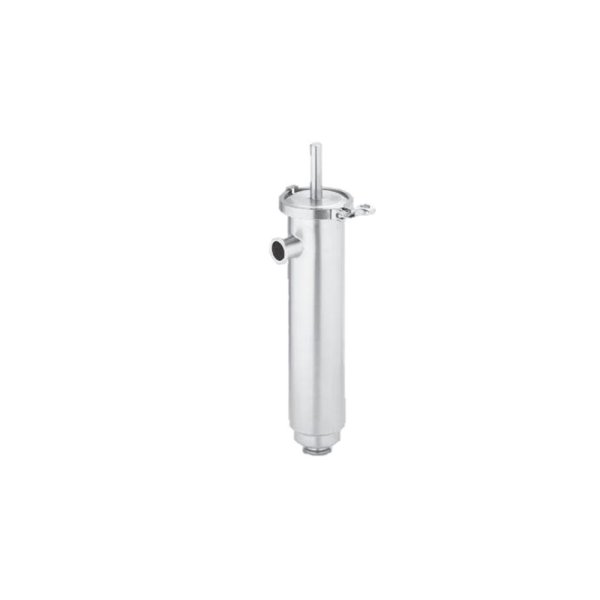

Side-Inlet Strainer
- Available in 316 Stainless Steel
- 3-A Sanitary Standard
- Buna Gaskets
- Maximum Operating Pressure: 100 PSI
- Mesh Overscreens Sold Separately
Strainers are used to remove particles of various sizes from the process line, providing protection for pumps, valves and other downline process equipment. They are secured to the line via clamp.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
| Size (Tube OD) | Part Number | Dimensions | Effective Filtration Area | |||
| Short | A | B | C | D | ||
| 1″ | KEC010xx | 22.2 | 4 | 15.6 | 3.5 | 0.65 |
| 1-1/2″ | KEC015xx | 22.2 | 4 | 15.6 | 3.5 | 0.65 |
| 2″ | KEC020xx | 22.2 | 4 | 15.6 | 3.5 | 0.65 |
| 2-1/2″ | KEC025xx | 22.2 | 4.5 | 15.8 | 5 | 0.75 |
| 3″ | KEC030xx | 22.2 | 4.5 | 15.8 | 5 | 0.75 |
| Size (Tube OD) | Part Number | Dimensions | Effective Filtration Area | |||
| Long | A | B | C | D | ||
| 1-1/2″ | KED015xx | 41.9 | 4 | 35.2 | 3.5 | 1.95 |
| 2″ | KED020xx | 41.9 | 4 | 35.2 | 3.5 | 1.95 |
| 2-1/2″ | KED025xx | 41.9 | 4.5 | 35.4 | 5 | 2.25 |
| 3″ | KED030xx | 41.9 | 4.5 | 35.4 | 5 | 2.25 |
