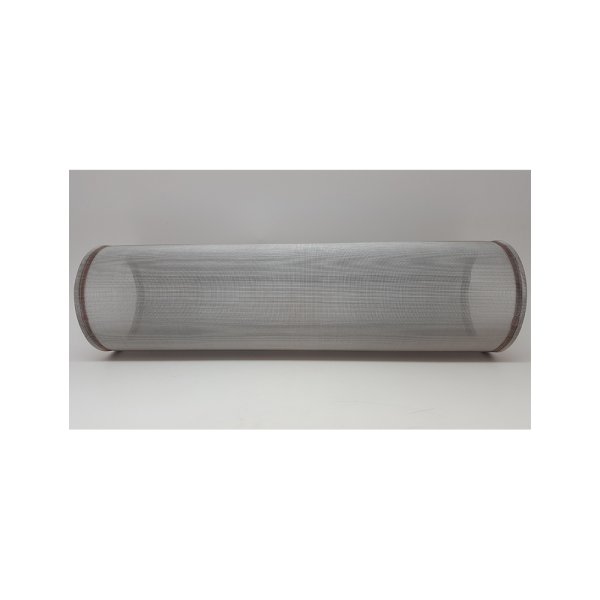

Mesh Overscreen
- For Use with In-Line or Side-Inlet Strainers
- Available in 316 Stainless Steel
- Various Mesh Sizes Available
For smaller particle removal, slide the 316ss mesh overscreen over the backup tube in an In-Line or Side-Inlet Strainer. Strainer mesh can be reused after cleaning.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
