Roll-On Expanding Ferrule

Roll-On Expanding Ferrule – Stainless Steel – 14RMP

Price range: $6.45 through $107.65

  • Sanitary Stainless Roll-On Expanding Ferrule
  • Available in 304 & 316L Stainless Steel
  • 3-A Sanitary Standard (Minimum polish 32 RA)
  • Ideal for Food & Beverage, Pharmaceutical and Thermal Management
  • Stamped with Heat Lot Numbers
Tri-Clamp Measurement Guide
Product Specifications
SKU: 14RMP Categories: , ,

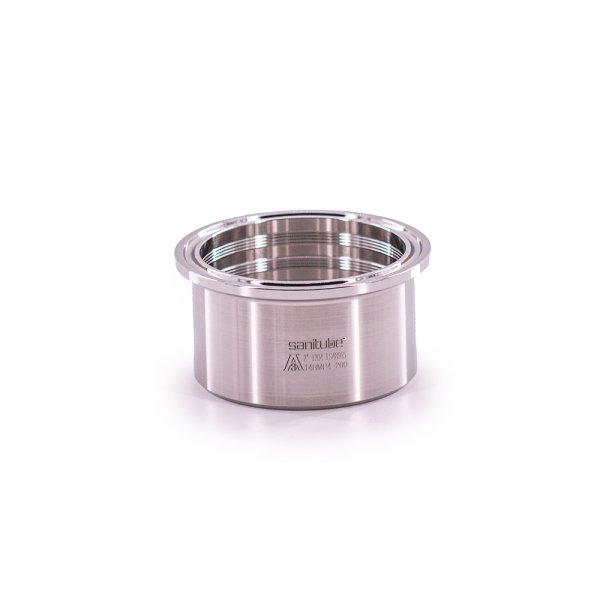

Sanitary Stainless Roll-On Expanding Ferrule – 3-A Certified

Crafted for high-purity applications, this Roll-On Expanding Ferrule is available in durable 304 & 316L stainless steel. It meets 3-A Sanitary Standards with a minimum polish of 32 RA, ensuring compliance for Food & Beverage, Pharmaceutical, and Thermal Management systems. Each ferrule is heat lot stamped for full traceability and quality assurance. Tri-Clamp Measurement Guide
Size (Tube OD) Part Number Dimensions
304L 316L A B

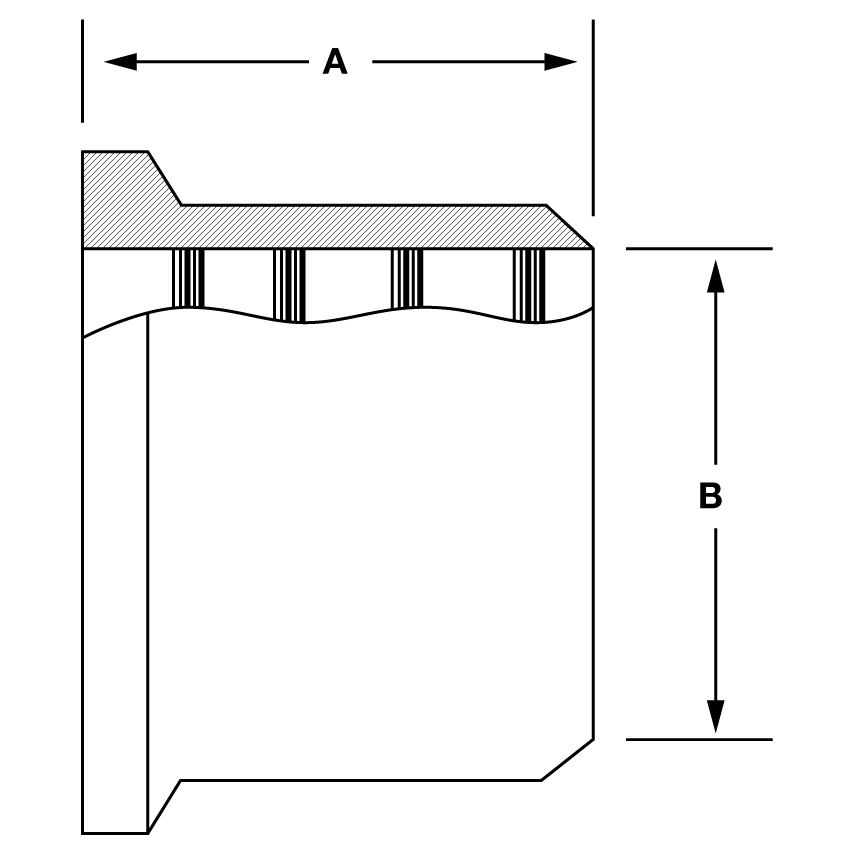

1″ 14RMP-100 — 0.750 1.005
1-1/2″ 14RPM-150 — 1.125 1.505
2″ 14RPM-200 — 1.312 2.005
2-1/2″ 14RPM-250 — 1.375 2.505
3″ 14RPM-300 — 1.437 3.005
4″ 14RPM-400 — 1.500 4.005
6″ 14RPM-600 — 2.000 6.005
Grade

,

Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4", 6"
DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
14RMP 14RMP 14RMP SS14RMP 14RMP EG14R
316L 316L 316L 316L 316L 316L
1″ 14RMP6-100 14RMP-1-316 14RMP-R100 SS14RMP-1-316 W614RMP-1 EG14R-6L1.0
1-1/2″ 14RMP6-150 14RMP-1.5-316 14RMP-R150 SS14RMP-1.5-316 W614RMP-15 EG14R-6L1.5
2″ 14RMP6-200 14RMP-2-316 14RMP-R200 SS14RMP-2-316 W614RMP-2 EG14R-6L2.0
2-1/2″ 14RMP6-250 14RMP-2.5-316 14RMP-R250 SS14RMP-2.5-316 W614RMP-25 EG14R-6L2.5
3″ 14RMP6-300 14RMP-3-316 14RMP-R300 SS14RMP-3-316 W614RMP-3 EG14R-6L3.0
4″ 14RMP6-400 14RMP-4-316 14RMP-R400 SS14RMP-4-316 W614RMP-4 EG14R-6L4.0
6″ 14RMP6-600 SS14RMP-6-316 W614RMP-6



DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
14RMP 14RMP 14RMP SS14RMP 14RMP EG14R
304 304 304 304 304 304
1″ 14RMP4-100 14RMP-1-304 14RMP-G100 SS14RMP-1-304 W414RMP-1 EG14R1.0
1-1/2″ 14RMP4-150 14RMP-1.5-304 14RMP-G150 SS14RMP-1.5-304 W414RMP-15 EG14R1.5
2″ 14RMP4-200 14RMP-2-304 14RMP-G200 SS14RMP-2-304 W414RMP-2 EG14R2.0
2-1/2″ 14RMP4-250 14RMP-2.5-304 14RMP-G250 SS14RMP-2.5-304 W414RMP-25 EG14R2.5
3″ 14RMP4-300 14RMP-3-304 14RMP-G300 SS14RMP-3-304 W414RMP-3 EG14R3.0
4″ 14RMP4-400 14RMP-4-304 14RMP-G400 SS14RMP-4-304 W414RMP-4 EG14R4.0
6″ 14RMP4-600 14RMP-G600 SS14RMP-6-304 W414RMP-6

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
