Butt Weld True Wye – Stainless Steel – 28W
Price range: $103.05 through $1,298.30
High-performance Butt Weld True Wye designed for precise flow splitting in sanitary process lines. Available in 304 and 316L stainless steel grades, meeting 3-A Sanitary Standards.
The Butt Weld True Wye is a high-performance fitting designed to split process flows evenly in sanitary piping systems. Manufactured from premium 304 and 316L stainless steel, it meets strict 3-A Sanitary Standards, ensuring hygiene and reliability in critical industries such as food, beverage, and pharmaceuticals. The true wye design provides a precise flow path split, reducing turbulence and contamination risks. Available in a range of sizes, this fitting is engineered for durability, corrosion resistance, and long-term performance. Its smooth internal surface ensures easy cleaning and compliance with CIP (Clean-in-Place) procedures.

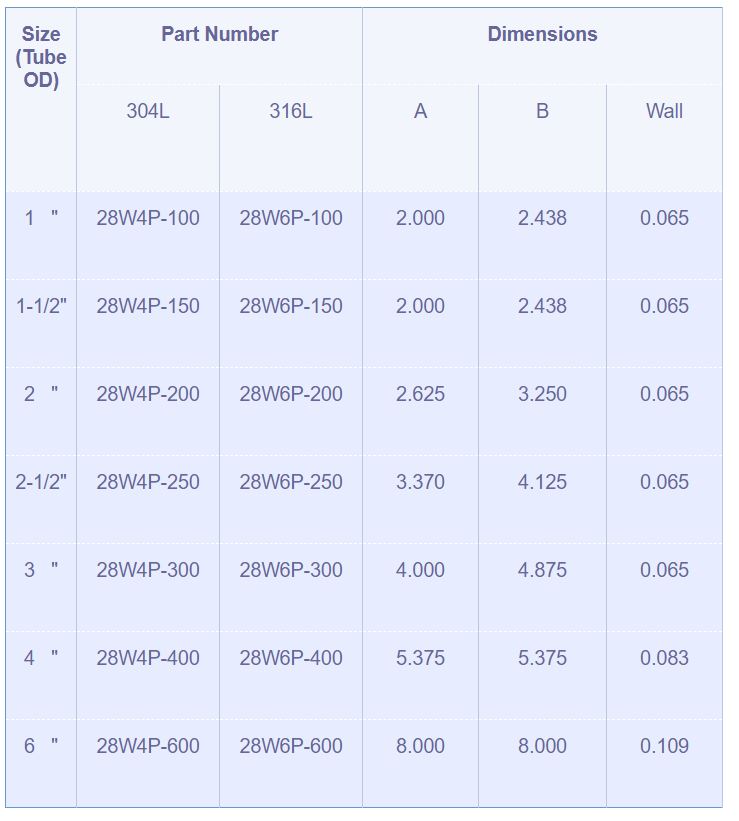

| Size (Tube OD) | Part Number | Dimensions | |||||
| 304L | 316L | A | B | Wall | |||
| 1 “ | 28W4P-100 | 28W6P-100 | 2.000 | 2.438 | 0.065 | ||
| 1-1/2″ | 28W4P-150 | 28W6P-150 | 2.000 | 2.438 | 0.065 | ||
| 2 “ | 28W4P-200 | 28W6P-200 | 2.625 | 3.250 | 0.065 | ||
| 2-1/2″ | 28W4P-250 | 28W6P-250 | 3.370 | 4.125 | 0.065 | ||
| 3 “ | 28W4P-300 | 28W6P-300 | 4.000 | 4.875 | 0.065 | ||
| 4 “ | 28W4P-400 | 28W6P-400 | 5.375 | 5.375 | 0.083 | ||
| 6 “ | 28W4P-600 | 28W6P-600 | 8.000 | 8.000 | 0.109 | ||
