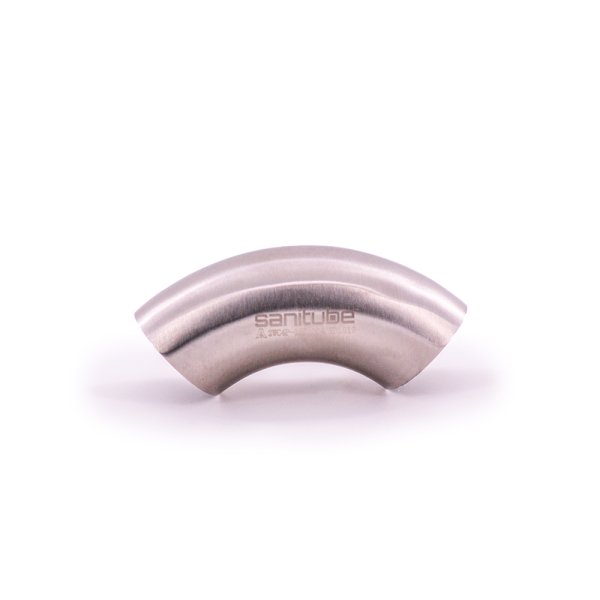

Butt Weld 90° Elbow
- Available in 304 and 316L
- 3-A Sanitary Standard
Butt Weld 90° Elbows turn a process line at 90° and permanently connect to the process line via weld. View our other butt weld fittings here.
| Size (Tube OD) |
Part Number | Dimensions | |||||
| 304 | 316L | A | R | Wall | |||
| 1/2" | 2WC4P-050 | 2WC6P-050 | 1.125 | 1.125 | 0.065 | ||
| 3/4" | 2WC4P-075 | 2WC6P-075 | 1.125 | 1.125 | 0.065 | ||
| 1 " | 2WC4P-100 | 2WC6P-100 | 1.500 | 1.500 | 0.065 | ||
| 1-1/2" | 2WC4P-150 | 2WC6P-150 | 2.250 | 2.250 | 0.065 | ||
| 2 " | 2WC4P-200 | 2WC6P-200 | 3.000 | 3.000 | 0.065 | ||
| 2-1/2" | 2WC4P-250 | 2WC6P-250 | 3.750 | 3.750 | 0.065 | ||
| 3 " | 2WC4P-300 | 2WC6P-300 | 4.500 | 4.500 | 0.065 | ||
| 4 " | 2WC4P-400 | 2WC6P-400 | 6.000 | 6.000 | 0.083 | ||
| 6 " | 2WC4P-600 | 2WC6P-600 | 9.000 | 9.000 | 0.109 | ||
| 8 " | 2WC4P-800 | 2WC6P-800 | 12.000 | 12.000 | 0.109 | ||
