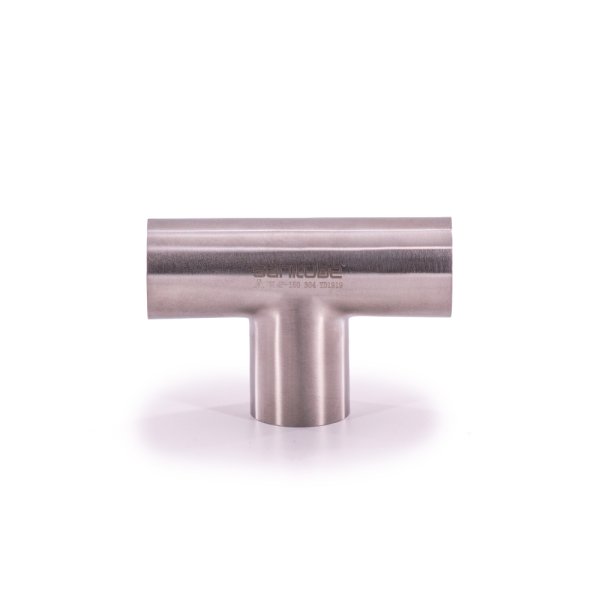

Butt Weld Long Tee
- Available in 304 and 316L
- 3-A Sanitary Standard
Butt Weld Tees have a straight run with a right-angle branch. Connection to the line is permanently secured via weld. View more of our butt weld tees here.
Size (Tube OD) |
Part Number | Dimensions | |||||
304L | 316L | A | B | Wall | |||
1/2" | -- | 7WL6P-050 | 3.750 | 1.875 | 0.065 | ||
3/4" | -- | 7WL6P-075 | 3.750 | 1.875 | 0.065 | ||
1" | 7WL4P-100 | 7WL6P-100 | 3.750 | 1.875 | 0.065 | ||
1-1/2" | 7WL4P-150 | 7WL6P-150 | 4.500 | 2.250 | 0.065 | ||
2" | 7WL4P-200 | 7WL6P-200 | 6.000 | 3.000 | 0.065 | ||
2-1/2" | 7WL4P-250 | 7WL6P-250 | 6.000 | 3.000 | 0.065 | ||
3" | 7WL4P-300 | 7WL6P-300 | 6.500 | 3.250 | 0.065 | ||
4" | 7WL4P-400 | 7WL6P-400 | 7.750 | 3.875 | 0.083 | ||
6" | 7WL4P-600 | 7WL6P-600 | 11.250 | 5.625 | 0.109 | ||
8" | 7WL4P-800 | 7WL6P-800 | 14.000 | 7.000 | 0.109 |
