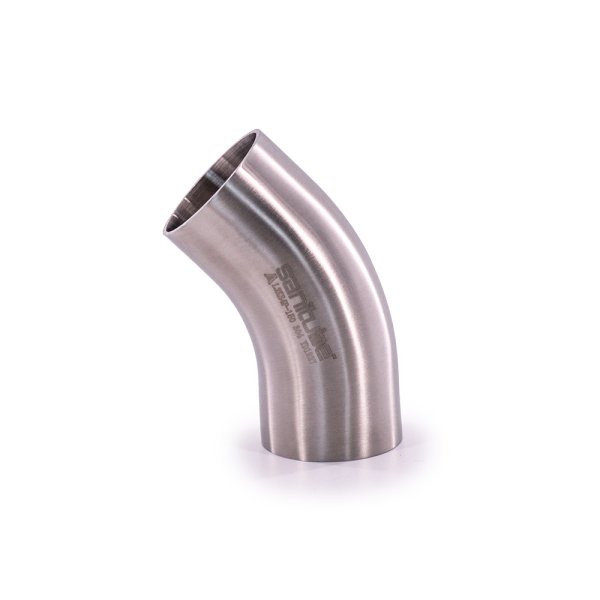

Butt Weld 45° Elbow with Tangents
- Available in 304 and 316L
- 3-A Sanitary Standard
Butt Weld 45° Elbows turn a process line at a 45° angle and permanently connect to the process line via weld. The long tangents provide extra space for welding in place.
| Size (Tube OD) |
Part Number | Dimensions | |||||
| 304 | 316L | A | R | Wall | |||
| 1/2" | -- | L2KS6P-050 | 3.000 | 1.125 | 0.065 | ||
| 3/4" | -- | L2KS6P-075 | 3.000 | 1.125 | 0.065 | ||
| 1 " | L2KS4P-100 | L2KS6P-100 | 1.188 | 1.500 | 0.065 | ||
| 1-1/2" | L2KS4P-150 | L2KS6P-150 | 1.625 | 2.250 | 0.065 | ||
| 2 " | L2KS4P-200 | L2KS6P-200 | 2.312 | 3.000 | 0.065 | ||
| 2-1/2" | L2KS4P-250 | L2KS6P-250 | 3.000 | 3.750 | 0.065 | ||
| 3 " | L2KS4P-300 | L2KS6P-300 | 3.688 | 4.500 | 0.065 | ||
| 4 " | L2KS4P-400 | L2KS6P-400 | 4.812 | 6.000 | 0.083 | ||
| 6 " | L2KS4P-600 | L2KS6P-600 | 6.750 | 9.000 | 0.109 | ||
