SPOOL

Tri-Clamp Sanitary Spool Assembly – Stainless Steel – SPOOL

$0.00

  • Available in 304 & 316L
  • 3-A Sanitary Standard
  • Available in Standard and Custom Sizes
  • Lead Times Vary Based Upon Requirements

Tri-Clamp Sanitary Spool Assemblies can be easily inserted into a process line without fabrication. As non-permanent elements of the line, they can be quickly disassembled, cleaned, moved or reassembled in a different configuration, making them ideal fittings for use and repurpose. Their versatility make them a cost-effective solution. Available in any configuration of OD and length.

Tri-Clamp Measurement Guide
Product Specifications

Out of stock

SKU: SPOOL Categories: , ,
Tri-Clamp Measurement Guide
Size
(Tube OD)		 Part Number Dimensions
304L 316L

A

(min.)

A

(max.)
1/2″ SPOOL4-050 SPOOL6-050 1.625 241.000
3/4″ SPOOL4-075 SPOOL6-075 1.625 241.000
1   “ SPOOL4-100 SPOOL6-100 1.625 241.000
1-1/2″ SPOOL4-150 SPOOL6-150 1.625 241.000
2   “ SPOOL4-200 SPOOL6-200 1.625 241.000
2-1/2″ SPOOL4-250 SPOOL6-250 1.625 241.000
3   “ SPOOL4-300 SPOOL6-300 1.625 241.000
4   “ SPOOL4-400 SPOOL6-400 2.250 241.000
6   “ SPOOL4-600 SPOOL6-600 3.000 241.000
8   “ SPOOL4-800 SPOOL6-800 3.000 241.000

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

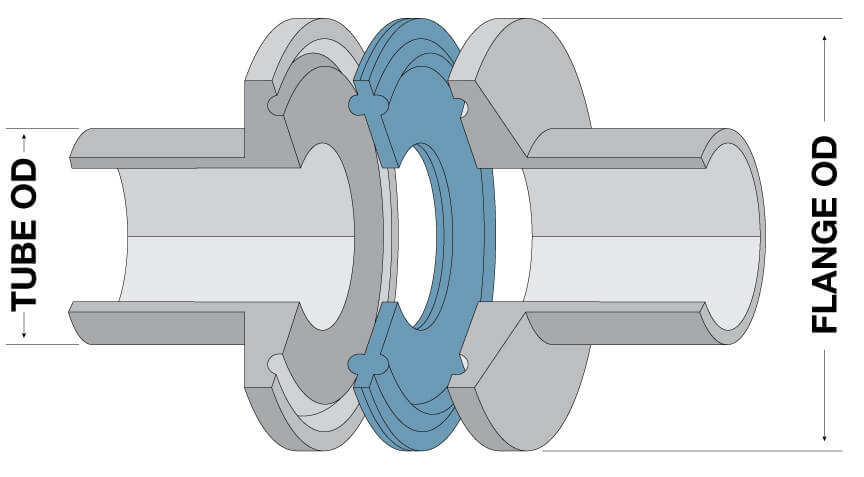

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
