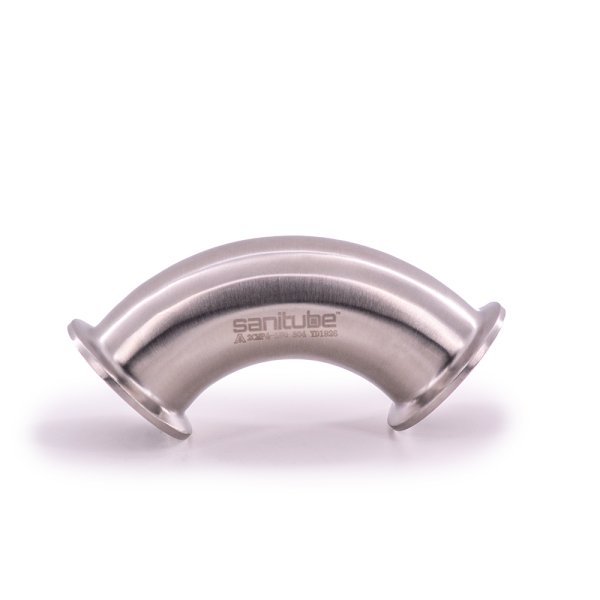

BioPharm Tri-Clamp 90° Elbow

Tri-Clamp 90° Elbow

  • Available in 304 and 316L
  • 3-A Sanitary Standard

Tri-Clamp 90° Elbows turn a process line at 90° and secure by connecting to the process line via clamp.

Tri-Clamp Fitting Guide

SKU:2CMP
Clear

Size
(Tube OD)
Part Number Dimensions
304L 316L A R
1/2" -- 2CMP6-050 1.625 1.125
3/4" -- 2CMP6-075 1.625 1.125
1 " 2CMP4-100 2CMP6-100 2.000 1.500
1-1/2" 2CMP4-150 2CMP6-150 2.750 2.250
2 " 2CMP4-200 2CMP6-200 3.500 3.000
2-1/2" 2CMP4-250 2CMP6-250 4.250 3.750
3 " 2CMP4-300 2CMP6-300 5.000 4.500
4 " 2CMP4-400 2CMP6-400 6.625 6.000
6 " 2CMP4-600 2CMP6-600 9.875 9.000
8 " 2CMP4-800 2CMP6-800 12.875 12.000
