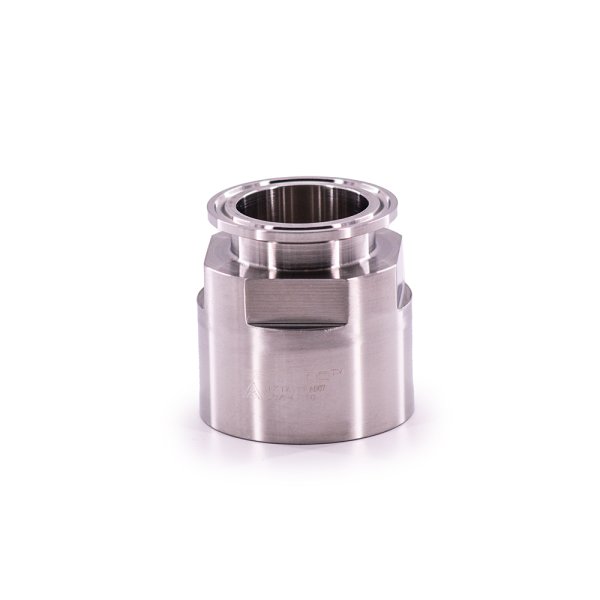

Tri-Clamp x Female NPT Adapter

Tri-Clamp x Female NPT Adapter – Stainless Steel – 22MP

Price range: $43.10 through $344.30

  • Sanitary Stainless Tri-Clamp x Female NPT Adapter
  • Available in 304 & 316L Stainless Steel
  • Sanitary Grade (Minimum polish 32 RA)
  • Ideal for Food & Beverage and Pharmaceutical Markets
  • Stamped with Heat Lot Numbers
Tri-Clamp Measurement Guide
SKU: 22MP Categories: , ,

Sanitary Stainless Tri-Clamp x Female NPT Adapter – 304 & 316L Steel

Connect sanitary processing systems with confidence using our Sanitary Stainless Tri-Clamp x Female NPT Adapter. Precision-engineered from durable 304 or 316L stainless steel, this adapter meets sanitary grade standards with a smooth 32 RA minimum surface finish for hygienic performance. Ideal for applications in the food, beverage, and pharmaceutical industries, each piece is heat lot stamped for traceability and quality assurance. [tablink tab="faqs"]Tri-Clamp Measurement Guide[/tablink]
Size
(OD and NPT)		 Part Number Dimensions
304L 316L A
1/2″ — 22MP6-050 1.500
3/4″ — 22MP6-075 1.625
1″ 22MP4-100 22MP6-100 1.625
1-1/2″ 22MP4-150 22MP6-150 2.250
2″ 22MP4-200 22MP6-200 2.406
2-1/2″ 22MP4-250 22MP6-250 2.187
3″ 22MP4-300 22MP6-300 2.187
4″ 22MP4-400 22MP6-400 3.652
Grade

,

Size (Tube OD x NPT)

, , , , , , , , , , , , , , , , , , , , , ,

DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
22MP 22MP 22MP SS22MP 22MP EG22
316L 316L 316L 316L 316L 316L
1/2″ 22MP6-050 22MP-.50-316 22MP-R50 SS22MP-0.50-316L W622MP-.50
3/4″ 22MP6-075 22MP-.75-316 22MP-R75 SS22MP-0.75-316L W622MP-.75
3/4″ x 1/2″ 22MP6-075050 22MP-.75X.50-316 22MP-R7550 W622MP-.75X.50 EG22-6L.75X.5
1″ 22MP6-100 22MP-1-316 22MP-R100 SS22MP-1-316L W622MP-1 EG22-6L1.0
1″ x 1/2″ 22MP6-100050 22MP-1X.50-316 22MP-R10050 W622MP-1X.50 EG22-6L1.0X.5
1″ x 3/4″ 22MP6-100075 22MP-1X.75-316 22MP-R10075 W622MP-1X.75 EG22-6L1.0X.75
1-1/2″ 22MP6-150 22MP-1.5-316 22MP-R150 SS22MP-1.5-316L W622MP-15 EG22-6L1.5
1-1/2″ x 1/2″ 22MP6-150050 22MP-1.5X.50-316 22MP-R15050 W622MP-15X.50 EG22-6L1.5X.5
1-1/2″ x 3/4″ 22MP6-150075 22MP-1.5X.75-316 22MP-R15075 W622MP-15X.75 EG22-6L1.5X.75
1-1/2″ x 1″ 22MP6-150100 22MP-1.5X1-316 22MP-R150100 W622MP-15X1 EG22-6L1.5X1.0
1-1/2″ x 1-1/4″ 22MP6-150125 22MP-1.5X1.25-316 22MP-R150125 W622MP-15X1.25 EG22-6L1.5X1.25
2″ 22MP6-200 22MP-2-316 22MP-R200 SS22MP-2-316L W622MP-2 EG22-6L2.0
2″ x 1/2″ 22MP6-200050 22MP-2X.50-316 22MP-R20050 W622MP-2X.50
2″ x 3/4″ 22MP6-200075 22MP-2X.75-316 22MP-R20075 W622MP-2X.75
2″ x 1″ 22MP6-200100 22MP-2X1-316 22MP-R200100 W622MP-2X1 EG22-6L2.0X1.0
2″ x 1-1/2″ 22MP6-200150 22MP-2X1.5-316 22MP-R200150 W622MP-2X15 EG22-6L2.0X1.5
2-1/2″ 22MP6-250 22MP-2.5-316 22MP-R250 SS22MP-2.5-316L W622MP-25 EG22-6L2.5
2-1/2″ x 1-1/2″ 22MP6-250150 22MP-2.5X1.5-316 22MP-R250150 W622MP-25X15 EG22-6L2.5X1.5
2-1/2″ x 2″ 22MP6-250200 22MP-2.5X2-316 22MP-R250200 W622MP-25X2 EG22-6L2.5X2.0
3″ 22MP6-300 22MP-3-316 22MP-R300 SS22MP-3-316L W622MP-3 EG22-6L3.0
3″ x 2″ 22MP6-300200 22MP-3X2-316 22MP-R300200 W622MP-3X2 EG22-6L3.0X2.0
4″ 22MP6-400 22MP-4-316 22MP-R400 SS22MP-4-316L W622MP-4 EG22-6L4.0
4″ x 3″ 22MP6-400300 22MP-4X3-316 22MP-R400300 W622MP-4X3 EG22-6L4.0X3.0



DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
22MP 22MP 22MP SS22MP 22MP EG22
304 304 304 304 304 304
1″ 22MP4-100 22MP-1-304 22MP-G100 SS22MP-1-304 W422MP-1 EG221.0
1-1/2″ 22MP4-150 22MP-1.5-304 22MP-G150 SS22MP-1.5-304 W422MP-15 EG221.5
2″ 22MP4-200 22MP-2-304 22MP-G200 SS22MP-2-304 W422MP-2 EG222.0
2-1/2″ 22MP4-250 22MP-2.5-304 22MP-G250 SS22MP-2.5-304 W422MP-25 EG222.5
3″ 22MP4-300 22MP-3-304 22MP-G300 SS22MP-3-304 W422MP-3 EG223.0
4″ 22MP4-400 22MP-4-304 22MP-G400 SS22MP-4-304 W422MP-4 EG224.0

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
