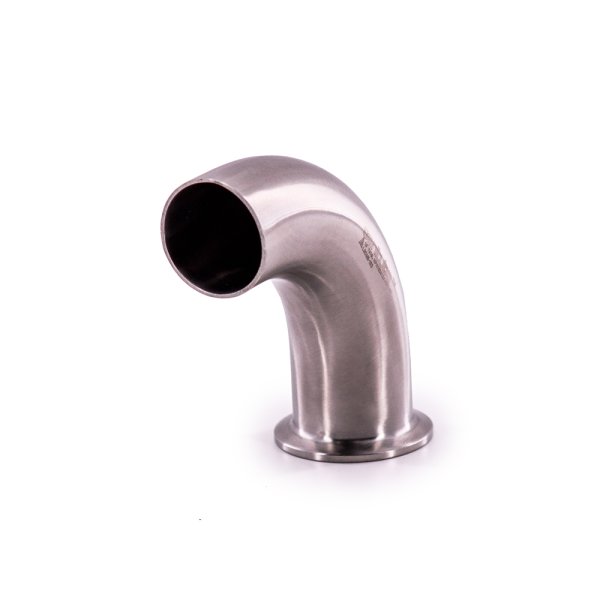

Tri-Clamp x Butt Weld 90° Elbow
- Available in 304 and 316L
- 3-A Sanitary Standard
Tri-Clamp x Butt Weld 90° Elbows turn a process line at a 90° angle and secure by connecting to the process line via clamp and weld.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
| Size (Tube OD) |
Part Number | Dimensions | |||||
| 304L | 316L | A | B | Wall | |||
| 1/2 " | -- | L2CM6-050 | 3.500 | 3.000 | 0.065 | ||
| 3/4 " | -- | L2CM6-075 | 3.500 | 3.000 | 0.065 | ||
| 1 " | L2CM4-100 | L2CM6-100 | 2.562 | 2.062 | 0.065 | ||
| 1-1/2" | L2CM4-150 | L2CM6-150 | 3.438 | 2.937 | 0.065 | ||
| 2 " | L2CM4-200 | L2CM6-200 | 4.562 | 4.062 | 0.065 | ||
| 2-1/2" | L2CM4-250 | L2CM6-250 | 5.688 | 5.187 | 0.065 | ||
| 3 " | L2CM4-300 | L2CM6-300 | 6.812 | 6.312 | 0.065 | ||
| 4 " | L2CM4-400 | L2CM6-400 | 8.937 | 8.312 | 0.083 |
||
| 6 " | L2CM4-600 | L2CM6-600 | 12.375 | 11.500 | 0.109 |
||
