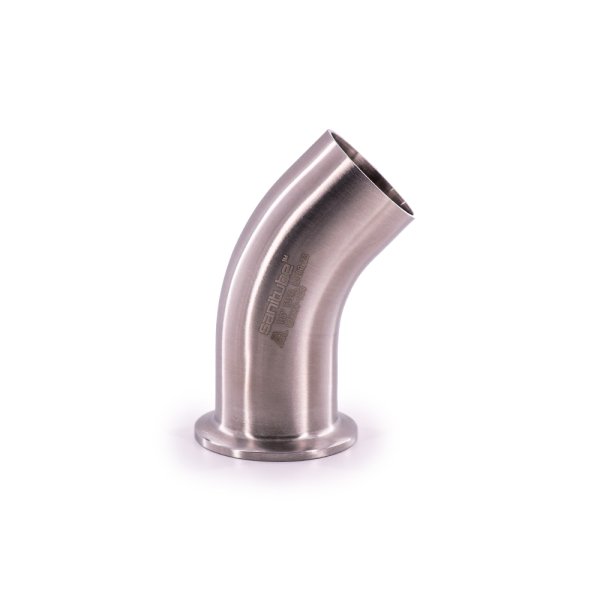

Tri-Clamp x Butt Weld 45° Elbow

Tri-Clamp x Butt Weld 45° Elbow – Stainless Steel – L2KM

Price range: $28.45 through $371.00

  • Available in 304 and 316L
  • 3-A Sanitary Standard

Tri-Clamp x Butt Weld 45° Elbows turn a process line at a 45° angle and secure by connecting to the process line via clamp and weld.

Tri-Clamp Measurement Guide
Product Specifications
SKU: L2KM Categories: , ,
Tri-Clamp Measurement Guide
Size (Tube OD) Part Number Dimensions
304L 316L A B Wall
1/2″ — L2KM6-050 2.250 2.750 0.065
3/4″ — L2KM6-075 2.250 2.750 0.065
1   “ L2KM4-100 L2KM6-100 1.180 1.688 0.065
1-1/2″ L2KM4-150 L2KM6-150 1.625 2.125 0.065
2   “ L2KM4-200 L2KM6-200 2.312 2.812 0.065
2-1/2″ L2KM4-250 L2KM6-250 3.000 3.500 0.065
3   “ L2KM4-300 L2KM6-300 3.688 4.188 0.065
4   “ L2KM4-400 L2KM6-400 4.812 5.437 0.083
6   “ L2KM4-600 L2KM6-600 6.750 7.625 0.109
Grade

,

Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6"

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
