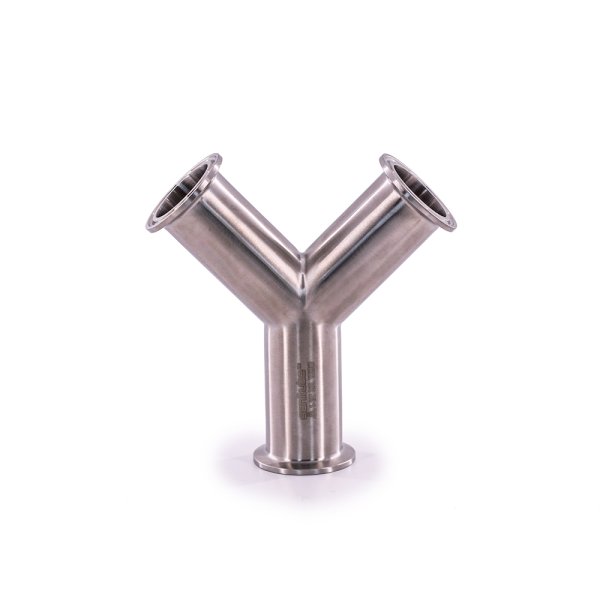

Tri-Clamp True Wye

Tri-Clamp True Wye – Stainless Steel – 28BMP

Price range: $154.10 through $1,525.25

  • Available in 304 and 316L
  • 3-A Sanitary Standard

Tri-Clamp True Wyes are used to create a 90° angles in process lines.

Tri-Clamp Measurement Guide
Product Specifications
SKU: 28BMP Categories: , ,

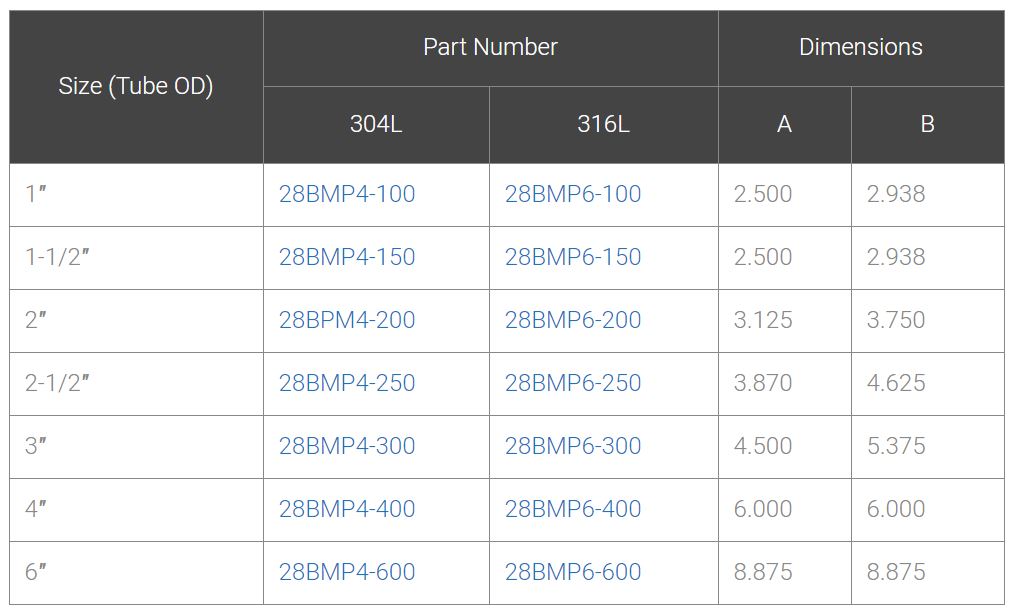

Tri-Clamp Measurement Guide
Size (Tube OD) Part Number Dimensions
304L 316L A B
1   “ 28BMP4-100 28BMP6-100 2.500 2.938
1-1/2″ 28BMP4-150 28BMP6-150 2.500 2.938
2   “ 28BPM4-200 28BMP6-200 3.125 3.750
2-1/2″ 28BMP4-250

28BMP6-250

 3.870 4.625
3   “ 28BMP4-300 28BMP6-300 4.500 5.375
4   “ 28BMP4-400 28BMP6-400 6.000 6.000
6   “ 28BMP4-600 28BMP6-600 8.875 8.875
Grade

,

Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4", 6"

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
