Tri-Clamp Tee

Tri-Clamp Tee

  • Available in 304 and 316L
  • 3-A Sanitary Standard

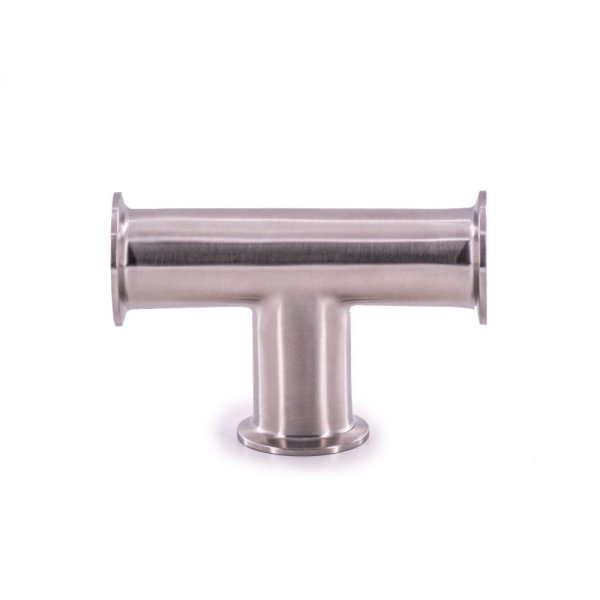

Tri-Clamp Tees have a straight run with a right-angle branch. Connection to the line is secured via clamp.

Tri-Clamp Fitting Guide

SKU:7MP

Size
(Tube OD)
Part Number Dimensions
304L 316L A B
1/2" -- 7MP6-050 4.750 2.375
3/4 " -- 7MP6-075 5.000 2.750
1 " 7MP4-100 7MP6-100 4.750 2.375
1-1/2" 7MP4-150 7MP6-150 5.500 2.750
2 " 7MP4-200 7MP6-200 7.000 3.500
2-1/2" 7MP4-250 7MP6-250 7.000 3.500
3 " 7MP4-300 7MP6-300 7.500 3.750
4 " 7MP4-400 7MP6-400 9.000 4.500
6 " 7MP4-600 7MP6-600 13.000 6.500
8 " 7MP4-800 7MP6-800 15.750 7.875
