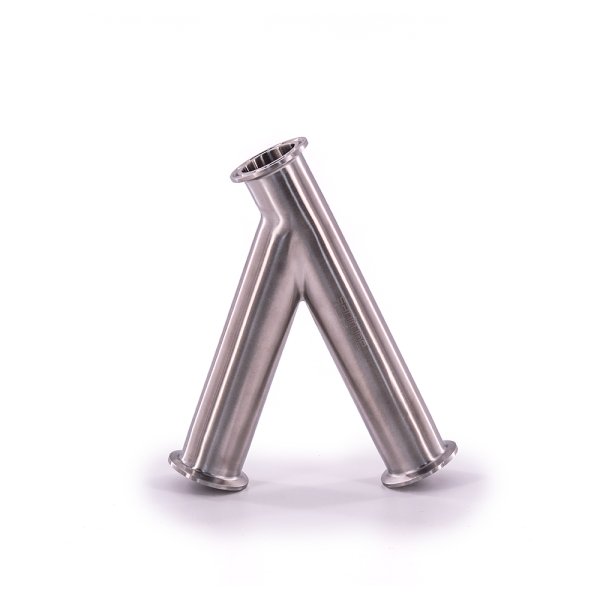

Tri-Clamp Lateral Wye

Tri-Clamp Lateral Wye – Stainless Steel – 28AMP

Price range: $118.65 through $1,169.65

  • Available in 304 and 316L
  • 3-A Sanitary Standard

Tri-Clamp Laterals are used to join process lines at a 45° angle.

Tri-Clamp Measurement Guide
Product Specifications
SKU: 28AMP Categories: , ,

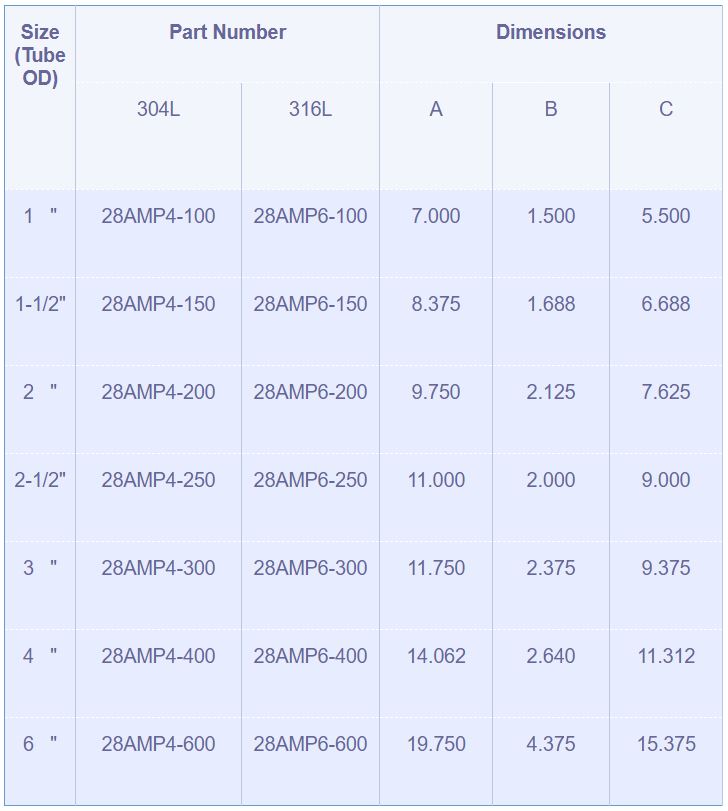

Tri-Clamp Measurement Guide
Size
(Tube OD)		 Part Number Dimensions
304L 316L A B C
1″ 28AMP4-100 28AMP6-100 7.000 1.500 5.500
1-1/2″ 28AMP4-150 28AMP6-150 8.375 1.688 6.688
2″ 28AMP4-200 28AMP6-200 9.750 2.125 7.625
2-1/2″ 28AMP4-250 28AMP6-250 11.000 2.000 9.000
3″ 28AMP4-300 28AMP6-300 11.750 2.375 9.375
4″ 28AMP4-400 28AMP6-400 14.062 2.640 11.312
6″ 28AMP4-600 28AMP6-600 19.750 4.375 15.375
Grade

,

Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4", 6"

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
