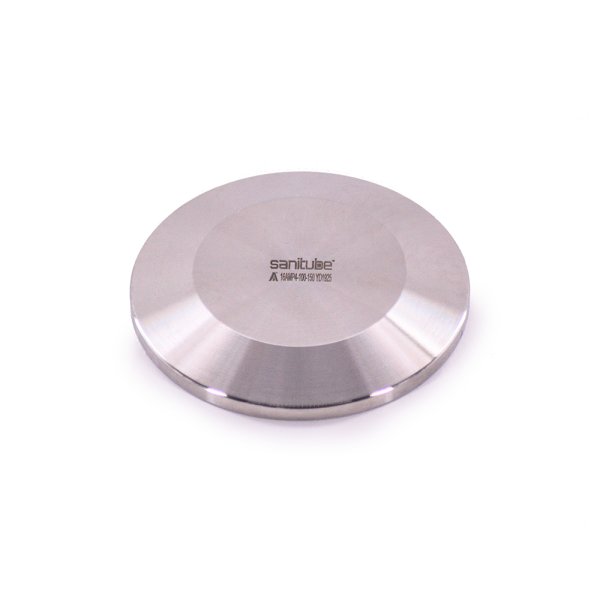

BioPharm Solid End Cap

Tri-Clamp End Cap – Stainless Steel – 16AMP

Price range: $3.80 through $489.35

  • Sanitary Stainless Tri-Clamp Solid End Cap
  • Available in 304 & 316L Stainless Steel
  • 3-A Sanitary Standard (Minimum polish 32 RA)
  • Secure Closure to The End of a Sanitary Process Line
  • Stamped with Heat Lot Numbers
Tri-Clamp Measurement Guide
Product Specifications
SKU: 16AMP Categories: , ,

Sanitary Stainless Steel Tri-Clamp Solid End Cap – 304 & 316L

Achieve a secure closure at the end of your sanitary process line with this solid end cap, available in 304 & 316L stainless steel. Built to 3-A sanitary standards with a minimum polish of 32 RA, it ensures a hygienic seal and is stamped with heat lot numbers for traceability. Tri-Clamp Measurement Guide
Size
(Tube OD)		 Part Number Dimensions
304 316L A B
1/2″ – 3/4″ — 16AMP6-050-075 0.187 0.992
1″ – 1-1/2″ — 16AMP6-100-150 0.250 1.984
2″ 16AMP4-200 16AMP6-200 0.250 2.516
2-1/2″ 16AMP4-250 16AMP6-250 0.250 3.047
3″ 16AMP4-300 16AMP6-300 0.250 3.579
4″ 16AMP4-400 16AMP6-400 0.312 4.682
6″ 16AMP4-600 16AMP6-600 0.437 6.570
8″ 16AMP4-800 16AMP6-800 0.437 8.570
10″ 16AMP4-1000 16AMP6-1000 0.437 10.570
12″ 16AMP4-1200 16AMP6-1200 0.437 12.570
Grade

,

Size (Tube OD)

1/2" to 3/4", 1" to 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
16AMP 16AMP 16AMP SS16AMP 16AMP EG16A
316L 316L 316L 316L 316L 316L
1/2″ to 3/4″ 16AMP6-050-075 16AMP-.50-316 16AMP-R50-75 SS16AMP-050-075-316L W616AMP-.50/.75 EG16A-6L.75
1″ to 1-1/2″ 16AMP6-100-150 16AMP-1-316 16AMP-R100-150 SS16AMP-1-1.5-316L W616AMP-1/15 EG16A-6L1.5
2″ 16AMP6-200 16AMP-2-316 16AMP-R200 SS16AMP-2-316L W616AMP-2 EG16A-6L2.0
2-1/2″ 16AMP6-250 16AMP-2.5-316 16AMP-R250 SS16AMP-2.5-316L W616AMP-25 EG16A-6L2.5
3″ 16AMP6-300 16AMP-3-316 16AMP-R300 SS16AMP-3-316L W616AMP-3 EG16A-6L3.0
4″ 16AMP6-400 16AMP-4-316 16AMP-R400 SS16AMP-4-316L W616AMP-4 EG16A-6L4.0
6″ 16AMP6-600 16AMP-6-316 16AMP-R600 SS16AMP-6-316L W616AMP-6 EG16A-6L6.0
8″ 16AMP6-800 16AMP-8-316 16AMP-R800 SS16AMP-8-316L W616AMP-8 EG16A-6L8.0
10″ 16AMP6-1000 16AMP-10-316 16AMP-R1000 SS16AMP-10-316L W616AMP-10 EG16A-6L10.0
12″ 16AMP6-1200 16AMP-12-316 16AMP-R1200 SS16AMP-12-316L W616AMP-12 EG16A-6L12.0



DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
16AMP 16AMP 16AMP SS16AMP 16AMP EG16A
304 304 304 304 304 304
1″ to 1-1/2″ 16AMP4-100-150 16AMP-1-304 16AMP-G100-150 SS16AMP-1-1.5-304 W416AMP-1/15 EG16A1.5
2″ 16AMP4-200 16AMP-2-304 16AMP-G200 SS16AMP-2-304 W416AMP-2 EG16A2.0
2-1/2″ 16AMP4-250 16AMP-2.5-304 16AMP-G250 SS16AMP-2.5-304 W416AMP-25 EG16A2.5
3″ 16AMP4-300 16AMP-3-304 16AMP-G300 SS16AMP-3-304 W416AMP-3 EG16A3.0
4″ 16AMP4-400 16AMP-4-304 16AMP-G400 SS16AMP-4-304 W416AMP-4 EG16A4.0
6″ 16AMP4-600 16AMP-6-304 16AMP-G600 SS16AMP-6-304 W416AMP-6 EG16A6.0
8″ 16AMP4-800 16AMP-8-304 16AMP-G800 SS16AMP-8-304 W416AMP-8
10″ 16AMP4-1000 16AMP-10-304 16AMP-G1000 SS16AMP-10-304 W416AMP-10
12″ 16AMP4-1200 16AMP-12-304 16AMP-G1200 SS16AMP-12-304 W416AMP-12

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

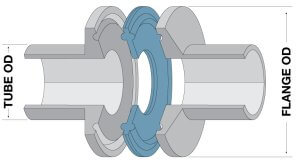

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
