Tri-Clamp Cross

Tri-Clamp Cross – Stainless Steel – 9MP

Price range: $134.10 through $1,792.80

  • Available in 316L
  • 3-A Sanitary Standard

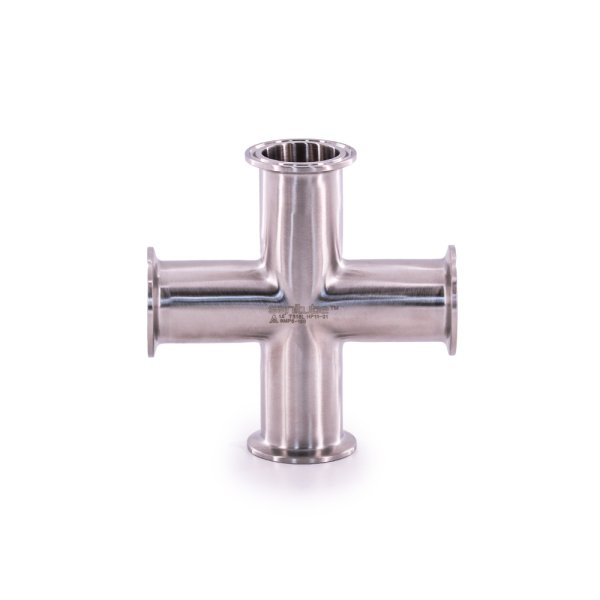

Tri-Clamp Crosses have two intersecting runs. Connection to the line is secured via clamp.

Tri-Clamp Measurement Guide
Product Specifications
SKU: 9MP Categories: , ,
Tri-Clamp Measurement Guide
Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4", 6"

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
