Tri-Clamp Butterfly Valve

Tri-Clamp Butterfly Valve – Stainless Steel – TCBFE/V

Price range: $133.45 through $1,879.10

  • Tri-Clamp Butterfly Valve with 4-Position Pull Handle
  • 316L Contact Surfaces with PTFE or Viton® Seat
  • Sanitary Grade (Minimum ID polish 32 RA)
  • Operating Temperature Range: 15°F to 200°F
  • Minimal Line Pressure: 0.4 Inches Hg Vacuum
Product Specifications
SKU: TCBFE/V Categories: ,

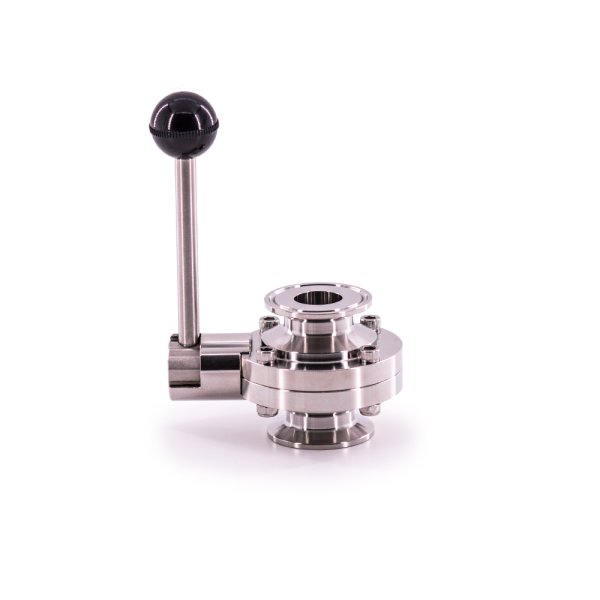

Tri-Clamp Butterfly Valve with 4-Position Pull Handle – 316L Stainless Steel, PTFE or Viton® Seat

This sanitary-grade Tri-Clamp Butterfly Valve features 316L stainless steel contact surfaces and is equipped with a reliable 4-position pull handle for precise flow control. Available with either a PTFE or Viton® seat, it ensures optimal compatibility with a wide range of processing media. The valve meets a minimum internal polish of 32 RA for sanitary compliance in food, beverage, and pharmaceutical processing. Operating in temperatures ranging from 15°F to 200°F, this valve performs under minimal line pressure (0.4 inches Hg vacuum) and is fully field serviceable for easy maintenance. Replacement seats are available for extended valve life, and performance specifications are based on water media at 68°F. Built for durability and clean operation, it’s an ideal solution for sanitary flow control systems.
Size
(Tube OD)		 Part Number Dimensions Break Torque Pressure Rating Flow Coefficient
EPDM Viton® A B C D E F G in/lbs (PSI) (CV)
1/2 “ TCBFE-050 TCBFV-050 4.400 2.800 1.400 0.900 0.370 3.100 20 140 7
3/4″ TCBFE-075 TCBFV-050 4.400 2.800 1.400 0.900 0.620 3.100 20 140 7
1 “ TCBFE-100 TCBFV-100 4.400 2.800 1.400 0.900 2.598 0.900 3.100 75 140 23
1-1/2″ TCBFE-150 TCBFV-150 4.400 2.800 1.400 0.900 2.756 1.400 3.100 130 140 80
2 “ TCBFE-200 TCBFV-200 4.400 3.100 1.400 0.900 2.756 1.900 3.900 165 140 230
2-1/2″ TCBFE-250 TCBFV-250 4.400 3.500 1.400 0.900 3.071 2.400 4.600 210 110 264
3 “ TCBFE-300 TCBFV-300 6.200 3.800 1.300 1.200 3.150 2.900 5.200 350 110 372
4 “ TCBFE-400 TCBFV-400 6.200 4.500 1.300 1.200 3.465 3.800 6.700 540 85 800
6 “ TCBFE-600 TCBFV-600 11.500 5.500 1.300 1.200 4.646 5.800 8.500 1550 60 1200
8 “ TCBFE-800 11.000 8.000 2.000 1.500 5.250 7.800 11.000 1650 60 2800
Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8"
Seat Type

,

Size DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland
TCBFE BFVPC B5107 SSBFVF W6BFVTC
1/2″ TCBFE-050 B5107E050CC-A W6BFVTC-E-.50-PH
3/4″ TCBFE-075 B5107E075CC-A W6BFVTC-E-.75-PH
1″ TCBFE-100 BFVPC-1-316-EPDM B5107E100CC-A SSBFVF-1-316L W6BFVTC-E-1-PH
1-1/2″ TCBFE-150 BFVPC-1.5-316-EPDM B5107E150CC-A SSBFVF-1.5-316L W6BFVTC-E-15-PH
2″ TCBFE-200 BFVPC-2-316-EPDM B5107E200CC-A SSBFVF-2-316L W6BFVTC-E-2-PH
2-1/2″ TCBFE-250 BFVPC-2.5-316-EPDM B5107E250CC-A SSBFVF-2.5-316L W6BFVTC-E-25-PH
3″ TCBFE-300 BFVPC-3-316-EPDM B5107E300CC-A SSBFVF-3-316L W6BFVTC-E-3-PH
4″ TCBFE-400 BFVPC-4-316-EPDM B5107E400CC-A SSBFVF-4-316L W6BFVTC-E-4-PH
6″ TCBFE-600 BFVPC-6-316-EPDM B5107E600CC-A SSBFVF-6-316L W6BFVTC-E-6-PH
8″ TCBFE-800 B5107E800CC-A SSBFVF-8-316L W6BFVTC-E-8-PH



Size DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland
TCBFV BFVPC B5107 SSBFVF W6BFVTC
Viton Viton Viton 316L Viton
1″ TCBFV-100 BFVPC-1-316-VITON B5107V100CC-A SSBFVF-1-316L W6BFVTC-V-1-PH
1-1/2″ TCBFV-150 BFVPC-1.5-316-VITON B5107V150CC-A SSBFVF-1.5-316L W6BFVTC-V-15-PH
2″ TCBFV-200 BFVPC-2-316-VITON B5107V200CC-A SSBFVF-2-316L W6BFVTC-V-2-PH
2-1/2″ TCBFV-250 BFVPC-2.5-316-VITON B5107V250CC-A SSBFVF-2.5-316L W6BFVTC-V-25-PH
3″ TCBFV-300 BFVPC-3-316-VITON B5107V300CC-A SSBFVF-3-316L W6BFVTC-V-3-PH
4″ TCBFV-400 BFVPC-4-316-VITON B5107V400CC-A SSBFVF-4-316L W6BFVTC-V-4-PH
6″ TCBFV-600 BFVPC-6-316-VITON B5107V600CC-A SSBFVF-6-316L W6BFVTC-V-6-PH
