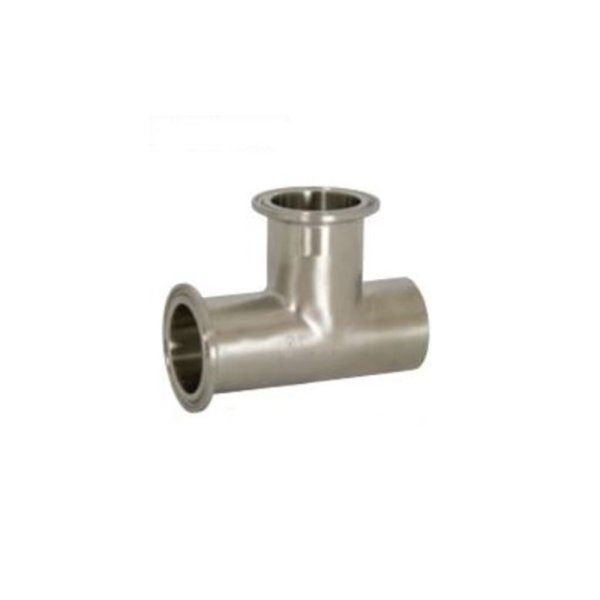

Tri-Clamp / Butt Weld Run x Tri-Clamp Branch Tee – Stainless Steel – 7WMM

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.

For example:

• If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
• If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

• Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
• Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.
