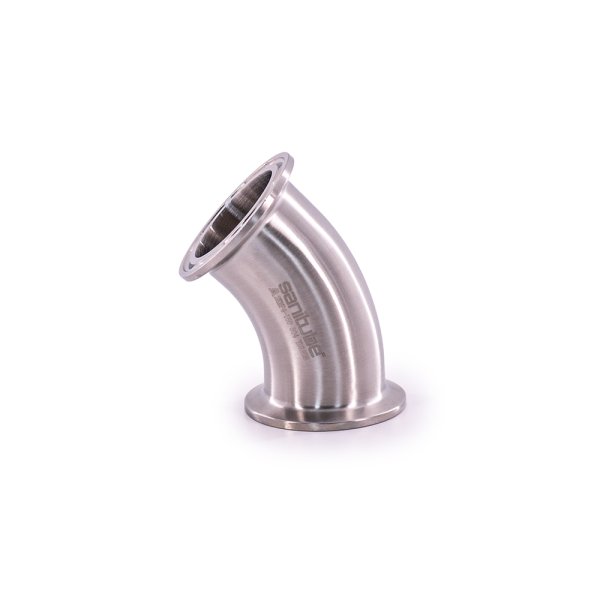

BioPharm Tri-Clamp 45° Elbow

Tri-Clamp 45° Elbow – Stainless Steel – 2KMP

Price range: $15.25 through $1,831.45

  • Available in 304 and 316L
  • 3-A Sanitary Standard

Tri-Clamp 45° Elbows turn a process line at 45° and secure by connecting to the process line via clamp.

Tri-Clamp Measurement Guide
Product Specifications
SKU: 2KMP Categories: , ,
Tri-Clamp Measurement Guide

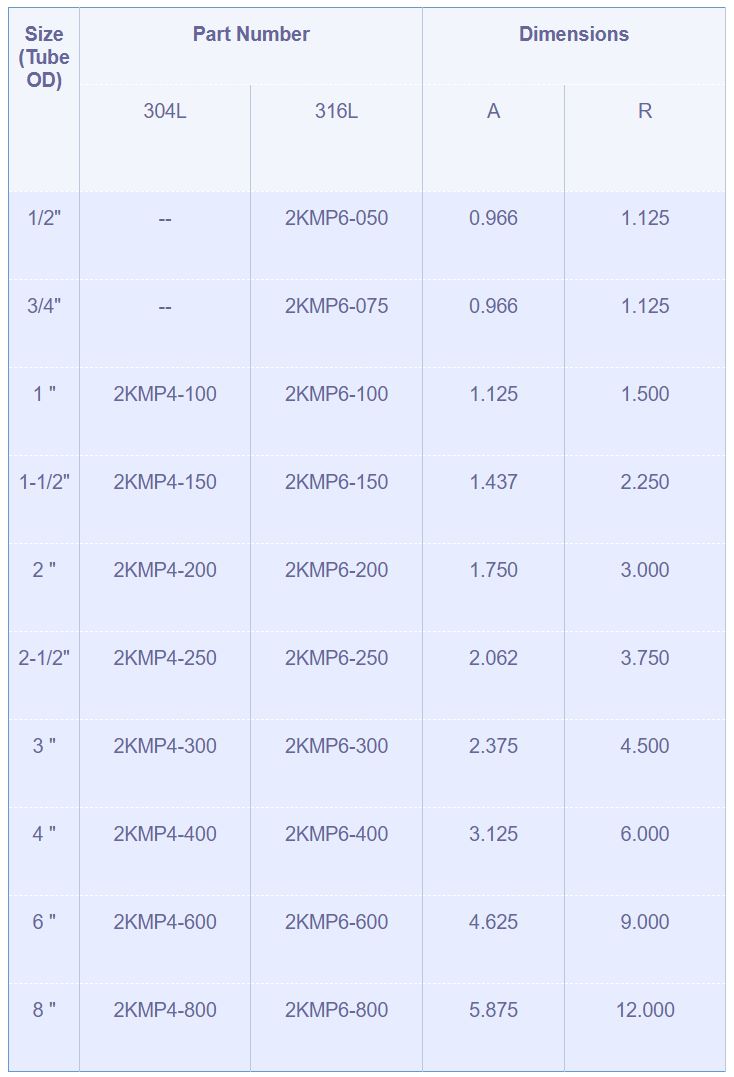

Size
(Tube OD)		 Part Number Dimensions
304L 316L A R
1/2″ — 2KMP6-050 0.966 1.125
3/4″ — 2KMP6-075 0.966 1.125
1 “ 2KMP4-100 2KMP6-100 1.125 1.500
1-1/2″ 2KMP4-150 2KMP6-150 1.437 2.250
2 “ 2KMP4-200 2KMP6-200 1.750 3.000
2-1/2″ 2KMP4-250 2KMP6-250 2.062 3.750
3 “ 2KMP4-300 2KMP6-300 2.375 4.500
4 “ 2KMP4-400 2KMP6-400 3.125 6.000
6 “ 2KMP4-600 2KMP6-600 4.625 9.000
8 “ 2KMP4-800 2KMP6-800 5.875 12.000
Grade

,

Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10", 12"

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
