Tri-Clamp 180° Return

Tri-Clamp 180° Return – Stainless Steel – 2UMP

Price range: $103.35 through $785.00

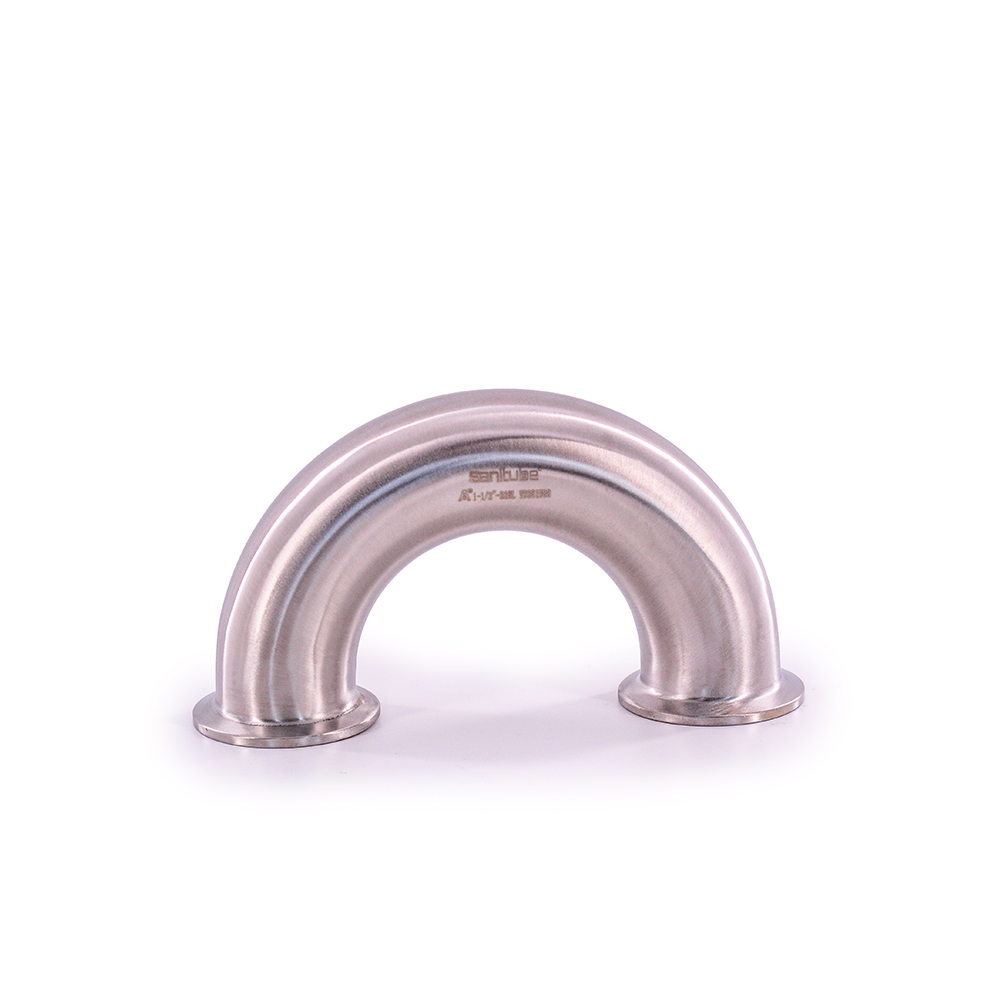

  • Sanitary Stainless Tri-Clamp 180° Return Bend
  • Available in 304 & 316L Stainless Steel
  • 3-A Sanitary Standard (Minimum polish 32 RA)
  • Ideal for Food & Beverage and Pharmaceutical Markets
  • Stamped with Heat Lot Numbers
Tri-Clamp Measurement Guide
Product Specifications
SKU: 2UMP Categories: ,

Sanitary Stainless Tri-Clamp 180° Return Bend – 304/316L

This Sanitary Stainless Tri-Clamp 180° Return Bend is available in both 304 and 316L stainless steel and meets 3-A Sanitary Standards with a minimum 32 RA finish. Designed for clean-in-place (CIP) systems, it’s ideal for food, beverage, and pharmaceutical applications. Each fitting is stamped with heat lot numbers for full traceability and quality assurance. Tri-Clamp Measurement Guide
Size (Tube OD) Part Number Dimensions
304 316L A B
1″ 2UMP4-100 2UMP6-100 3.000 2.500
1-1/2″ 2UMP4-150 2UMP6-150 4.500 3.500
2″ 2UMP4-200 2UMP6-200 6.000 4.500
2-1/2″ 2UMP4-250 2UMP6-250 7.500 5.500
3″ 2UMP4-300 2UMP6-300 9.000 6.500
4″ 2UMP4-400 2UMP6-400 12.000 8.625
6″ 2UMP4-600 2UMP6-600 18.000 12.875
Grade

,

Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4", 6"



DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
2UMP 2UMP B2WUMP SS2WUMP 2UMP EG2WU
316L 316L 316L 316L 316L 316L
1/2″ EG2WU-6L.5
3/4″ 2UMP-.75-316 EG2WU-6L.75
1″ 2UMP6-100 2UMP-1-316 B2WUMP-R100 SS2WUMP-1-316L W62UMP-1 EG2WU-6L1.0
1-1/2″ 2UMP6-150 2UMP-1.5-316 B2WUMP-R150 SS2WUMP-1.5-316L W62UMP-15 EG2WU-6L1.5
2″ 2UMP6-200 2UMP-2-316 B2WUMP-R200 SS2WUMP-2-316L W62UMP-2 EG2WU-6L2.0
2-1/2″ 2UMP6-250 2UMP-2.5-316 B2WUMP-R250 SS2WUMP-2.5-316L W62UMP-25 EG2WU-6L2.5
3″ 2UMP6-300 2UMP-3-316 B2WUMP-R300 SS2WUMP-3-316L W62UMP-3 EG2WU-6L3.0
4″ 2UMP6-400 2UMP-4-316 B2WUMP-R400 SS2WUMP-4-316L W62UMP-4 EG2WU-6L4.0
6″ 2UMP6-600 2UMP-6-316 W62UMP-6 EG2WU-6L6.0



  DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
  2UMP 2UMP B2WUMP SS2WUMP 2UMP EG2WU
  304 304 304 304 304 304
1″ 2UMP4-100 2UMP-1-304 SS2WUMP-1-304 W62UMP-1 EG2WU1.0
1-1/2″ 2UMP4-150 2UMP-1.5-304 SS2WUMP-1.5-304 W62UMP-15 EG2WU1.5
2″ 2UMP4-200 2UMP-2-304 SS2WUMP-2-304 W62UMP-2 EG2WU2.0
2-1/2″ 2UMP4-250 2UMP-2.5-304 SS2WUMP-2.5-304 W62UMP-25 EG2WU2.5
3″ 2UMP4-300 2UMP-3-304 SS2WUMP-3-304 W62UMP-3 EG2WU3.0
4″ 2UMP4-400 2UMP-4-304 SS2WUMP-4-304 W62UMP-4 EG2WU4.0
6″ 2UMP-6-304 EG2WU6.0

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
