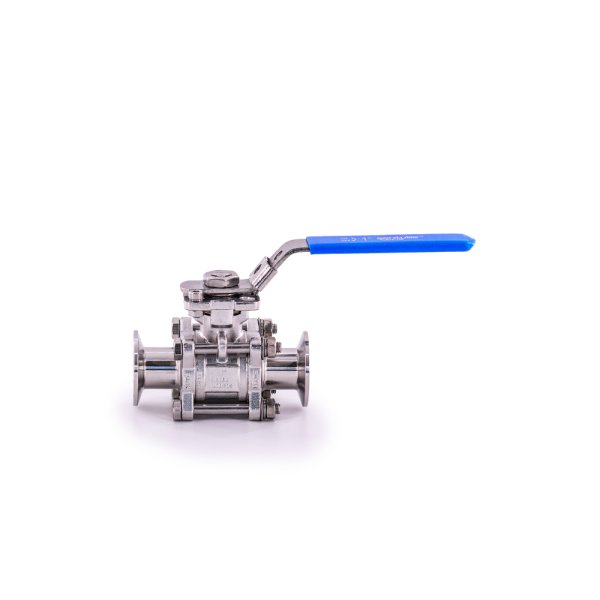

Three-Piece Encapsulated Tri-Clamp Ball Valve
- Three-Piece 316SS Construction
- 3-A Sanitary Standard
- Working Temperature Range: -4°F to 392°F
- Body Working Pressure: 1000 PSI WOG
- Fully Encapsulated
- Investment Casting
- Blowout Proof Stem
- Locking Handle
- ISO 5211 Mounting Pad
- Full Port Design
The Three-Piece Encapsulated Tri-Clamp Ball Valve is quarter-turn valve which uses a hollow, pivoting 316 stainless ball to control flow through the process line. The valve is open when the ball’s hole is in line with the flow, and closed when it is pivoted 90° by the valve handle. The valve is connected to the process line via Tri-Clamp.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
| Size (Tube OD) | Part Number | Dimensions | Torque (in/lb) | Weight (lbs.) | ||||||||||||
| D | W | H | H1 | H2 | H3 | L | G | K | J | N | ISO 5211 | Breakaway | Action | |||
| 1/2" | TCBVS-050 | 0.380 | 5.560 | 2.500 | 1.910 | 0.710 | 0.510 | 3.583 | 1.000 | 1.460 | 1.000 | 0.260 | F03 | 31 | 20 | 1.7 |
| 3/4" | TCBVS-075 | 0.620 | 5.560 | 2.620 | 2.040 | 0.740 | 0.510 | 4.016 | 1.000 | 1.460 | 1.000 | 0.260 | F03 | 47 | 32 | 2.1 |
| 1 " | TCBVS-100 | 0.870 | 5.560 | 2.730 | 2.150 | 0.710 | 0.510 | 4.528 | 1.170 | 1.650 | 1.990 | 0.260 | F04 | 105 | 58 | 3.0 |
| 1-1/2" | TCBVS-150 | 1.370 | 7.410 | 3.960 | 3.250 | 1.180 | 0.770 | 5.433 | 1.390 | 1.970 | 1.990 | 0.330 | F05 | 238 | 115 | 5.9 |
| 2 " | TCBVS-200 | 1.880 | 7.410 | 4.350 | 3.600 | 1.140 | 0.770 | 6.181 | 1.390 | 1.970 | 2.520 | 0.330 | F05 | 256 | 115 | 9.2 |
| 2-1/2" | TCBVS-250 | 2.370 | 10.240 | 5.480 | 4.610 | 1.480 | 1.020 | 6.693 | 1.950 | 2.830 | 3.050 | 0.470 | F07 | 900 | 288 | 19.2 |
| 3 " | TCBVS-300 | 2.870 | 10.240 | 5.830 | 4.990 | 1.500 | 1.020 | 7.796 | 1.950 | 2.830 | 3.580 | 0.470 | F07 | 1650 | 230 | 31.3 |
| 4 " | TCBVS-400 | 3.840 | 11.610 | 6.890 | 6.380 | 2.050 | 1.380 | 9.528 | 2.840 | 3.700 | 4.690 | 0.630 | F10 | 2027 | 345 | 45.2 |
| Component | Description | Material | |||
| 1 | Body | T316 Stainless Steel | |||
| 2 | Cap | T316 Stainless Steel | |||
| 3 | Ball | T316 Stainless Steel | |||
| 4 | Seat | PTFE | |||
| 5 | Seal | PTFE | |||
| 6 | Thrust Washer | PTFE | |||
| 7 | Stem Packing | PTFE | |||
| 8 | Gland Nut | T304 Stainless Steel | |||
| 9 | Spring Washer | T304 Stainless Steel | |||
| 10 | Stem Nut | T304 Stainless Steel | |||
| 11 | Stem | T316 Stainless Steel | |||
| 12 | Spring Washer | T304 Stainless Steel | |||
| 13 | Nut | T304 Stainless Steel | |||
| 14 | Bolt | T304 Stainless Steel | |||
| 15 | Handle | T304 Stainless Steel | |||
| 16 | Handle Sleeve | PVC | |||
| 17 | Locking Device | T304 Stainless Steel | |||
