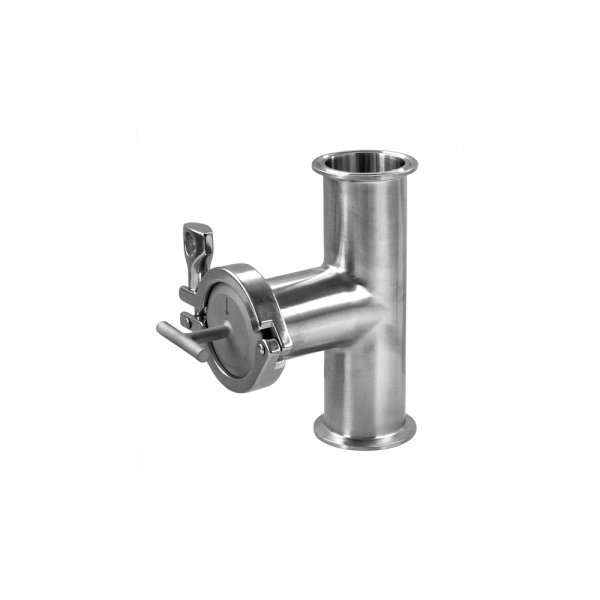

Tee Strainer
- Available in 316 Stainless Steel
- 3-A Sanitary Standard
- Fully Assembled with EPDM Gasket
- Maximum Operating Pressure: 100 PSI
Clamp Tee Strainers are a simple and cost effective method to protect your pump and process equipment. Standard Tri-Clamp connections make installation and maintenance easy.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
| Size (Tube OD) |
Part Number | Dimensions | Insert Thickness | |||
| A | B | C | D | |||
| 1-1/2″ | KET01500 | 2.75 | 5.5 | 2.75 | 4.343 | 0.075 |
| 1-1/2″ | KET01518 | 2.75 | 5.5 | 2.75 | 4.343 | 0.075 |
| 2″ | KET02000 | 3.5 | 7 | 3.5 | 5.093 | 0.075 |
| 2″ | KET02018 | 3.5 | 7 | 3.5 | 5.093 | 0.075 |
| 2-1/2″ | KET02500 | 3.5 | 7 | 3.5 | 5.093 | 0.109 |
| 2-1/2″ | KET02518 | 3.5 | 7 | 3.5 | 5.093 | 0.109 |
| 3″ | KET03000 | 3.75 | 7.5 | 3.75 | 5.343 | 0.109 |
| 3″ | KET03018 | 3.75 | 7.5 | 3.75 | 5.343 | 0.109 |
| 4″ | KET04000 | 4.5 | 9 | 4.5 | 6.115 | 0.109 |
| 4″ | KET04018 | 4.5 | 9 | 4.5 | 6.115 | 0.109 |
