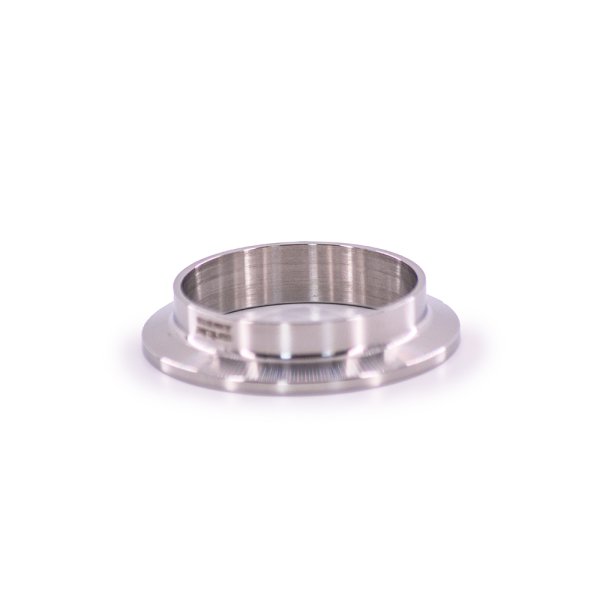

Short Weld Clamp Ferrule

Short Weld Clamp Ferrule – Stainless Steel – 14WMP

Price range: $3.50 through $177.65

  • Sanitary Stainless Short Weld Tri-Clamp Ferrules
  • Available in 304 & 316L Stainless Steel
  • 3-A Sanitary Standard (Minimum polish 32 RA)
  • Ideal for Food & Beverage, Pharmaceutical and Thermal Management
  • Stamped with Heat Lot Numbers
Tri-Clamp Measurement Guide
Product Specifications
SKU: 14WMP Categories: , ,

Sanitary Stainless Short Weld Tri-Clamp Ferrules – 3-A Certified, 304 & 316L Steel

Engineered for reliable sanitary processing, our Short Weld Tri-Clamp Ferrules are available in premium 304 and 316L stainless steel. These ferrules meet stringent 3-A Sanitary Standards with a smooth minimum 32 RA polish, ensuring safe use in food, beverage, pharmaceutical, and thermal management systems. Each ferrule is precision-stamped with heat lot numbers for complete traceability and quality assurance. Tri-Clamp Measurement Guide
Size
(Tube OD)		 Part Number Dimensions
304L 316L A B C
1/2″ 14WMP4-050 14WMP6-050 0.500 0.370 0.500
3/4″ 14WMP4-075 14WMP6-075 0.500 0.620 0.750
1″ 14WMP4-100 14WMP6-100 0.500 0.870 1.000
1-1/2″ 14WMP4-150 14WMP6-150 0.500 1.370 1.500
2″ 14WMP4-200 14WMP6-200 0.500 1.870 2.000
2-1/2″ 14WMP4-250 14WMP6-250 0.500 2.370 2.500
3″ 14WMP4-300 14WMP6-300 0.500 2.870 3.000
4″ 14WMP4-400 14WMP6-400 0.625 3.834 4.000
6″ 14WMP4-600 14WMP6-600 0.875 5.782 6.000
8″ 14WMP4-800 14WMP6-800 0.875 7.782 8.000
10″ 14WMP4-1000 14WMP6-1000 0.875 9.782 10.000
12″ 14WMP4-1200 14WMP6-1200 0.875 11.760 12.000
Grade

,

Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
14WMP 14WMP 14WMP SS14WMP 14WMP EG2CS
316L 316L 316L 316L 316L 316L
1/2″ 14WMP6-050 14WMP-.50-316 14WMP-R50 SS14WMP-.50-316 W614WMP-.50 EG2CS-6L.5
3/4″ 14WMP6-075 14WMP-.75-316 14WMP-R75 SS14WMP-.75-316 W614WMP-.75 EG2CS-6L.75
1″ 14WMP6-100 14WMP-1-316 14WMP-R100 SS14WMP-1-316 W614WMP-1 EG2CS-6L1.0
1-1/2″ 14WMP6-150 14WMP-1.5-316 14WMP-R150 SS14WMP-1.5-316 W614WMP-15 EG2CS-6L1.5
2″ 14WMP6-200 14WMP-2-316 14WMP-R200 SS14WMP-2-316 W614WMP-2 EG2CS-6L2.0
2-1/2″ 14WMP6-250 14WMP-2.5-316 14WMP-R250 SS14WMP-2.5-316 W614WMP-25 EG2CS-6L2.5
3″ 14WMP6-300 14WMP-3-316 14WMP-R300 SS14WMP-3-316 W614WMP-3 EG2CS-6L3.0
4″ 14WMP6-400 14WMP-4-316 14WMP-R400 SS14WMP-4-316 W614WMP-4 EG2CS-6L4.0
6″ 14WMP6-600 14WMP-6-316 14WMP-R600 SS14WMP-6-316 W614WMP-6 EG2CS-6L6.0
8″ 14WMP6-800 14WMP-8-316 14WMP-R800 SS14WMP-8-316 W614WMP-8 EG2CS-6L8.0
10″ 14WMP6-1000 14WMP-10-316 14WMP-R1000 SS14WMP-10-316 W614WMP-10 EG2CS-6L10.0
12″ 14WMP6-1200 14WMP-12-316 14WMP-R1200 SS14WMP-12-316 W614WMP-12 EG2CS-6L12.0



DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
14WMP 14WMP 14WMP SS14WMP 14WMP EG2CS
304 304 304 304 304 304
1″ 14WMP4-100 14WMP-1-304 14WMP-G100 SS14WMP-1-304 W414WMP-1 EG2CS1.0
1-1/2″ 14WMP4-150 14WMP-1.5-304 14WMP-G150 SS14WMP-1.5-304 W414WMP-15 EG2CS1.5
2″ 14WMP4-200 14WMP-2-304 14WMP-G200 SS14WMP-2-304 W414WMP-2 EG2CS2.0
2-1/2″ 14WMP4-250 14WMP-2.5-304 14WMP-G250 SS14WMP-2.5-304 W414WMP-25 EG2CS2.5
3″ 14WMP4-300 14WMP-3-304 14WMP-G300 SS14WMP-3-304 W414WMP-3 EG2CS3.0
4″ 14WMP4-400 14WMP-4-304 14WMP-G400 SS14WMP-4-304 W414WMP-4 EG2CS4.0
6″ 14WMP4-600 14WMP-6-304 14WMP-G600 SS14WMP-6-304 W414WMP-6 EG2CS6.0
8″ 14WMP4-800 14WMP-8-304 14WMP-G800 SS14WMP-8-304 W414WMP-8 EG2CS8.0
10″ 14WMP4-1000 14WMP-10-304 14WMP-G1000 SS14WMP-10-304 W414WMP-10 EG2CS10.0
12″ 14WMP4-1200 14WMP-12-304 14WMP-G1200 SS14WMP-12-304 W414WMP-12

How to Size a Tri-Clover/Tri-Clamp Fitting.

Have you ever wondered how to choose the correct Tri-Clamp size? Or how to measure an existing Tri-Clamp fitting?

The sizing is based on the outside diameter (OD) of the tube, not on the outside diameter (OD) of the flange.



Tri-Clamp-Diagram-2

For example:

  • If your tube OD measurement is 2 inches, then your Tri-Clamp size is 2”.
  • If your existing Tri-Clamp fitting’s flange measures approximately 2.5 inches OD (2.516”), then your Tri-Clamp size is 2”.

Consult the chart below for corresponding Size / Tube OD and Flange OD measurements.

Note:

  • Sizes ½” and ¾” have the same flange OD of approximately 1 inch (0.984”).
  • Sizes 1” and 1-1/2” have the same flange OD of approximately 2 inches (1.984”).

Tri-Clamp Fitting Size Chart.

Tri-Clamp Size / Tube OD Tri-Clamp Flange OD
1/2″ & 3/4″ 0.984″
1″ & 1-1/2″ 1.984″
2″ 2.516″
2.5″ 3.047″
3″ 3.579″
4″ 4.682″
6” 6.570”
8” 8.602”
10” 10.570”
12” 12.570”
