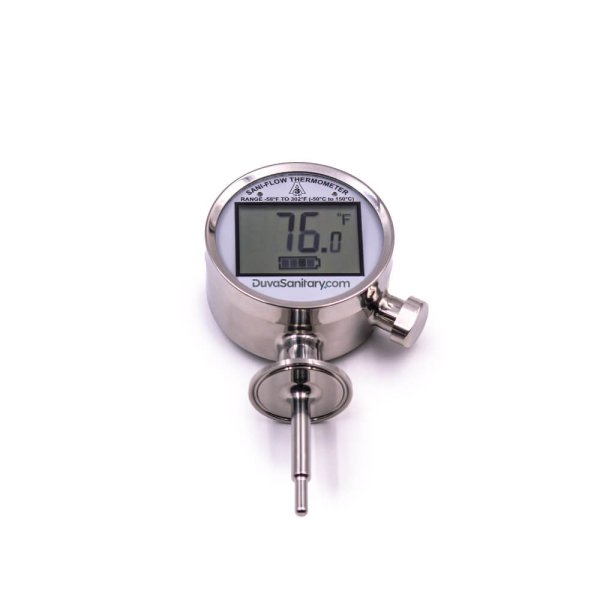

Sani-Flow™ Digital Thermometer
- 316L Contact Material
- 304L Case & Lens Ring
- 3-A Sanitary Standard
- Powered by Two AAA Batteries (1-3 Years)
- Accuracy: ±0.5°F (±0.3°C)
- Process Temperature Range: -58°F to 302°F
- Tri-Clamp Bottom Mount Configuration
- Other Configurations Available Upon Request
Sani-Flow™ Digital Thermometers provide accurate temperature readings of media as it moves through the process line. Connection is secured via clamp.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
