Polished Butt Weld End Cap

Polished Butt Weld End Cap – Stainless Steel – 16W

Price range: $7.50 through $444.45

  • Sanitary Stainless Butt Weld Dome End Cap
  • Available in 304 & 316L Stainless Steel
  • 3-A Sanitary Standard (Minimum polish 32 RA)
  • Ideal for Food & Beverage and Pharmaceutical Markets
  • Stamped with Heat Lot Numbers
Product Specifications
SKU: 16W Categories: , ,

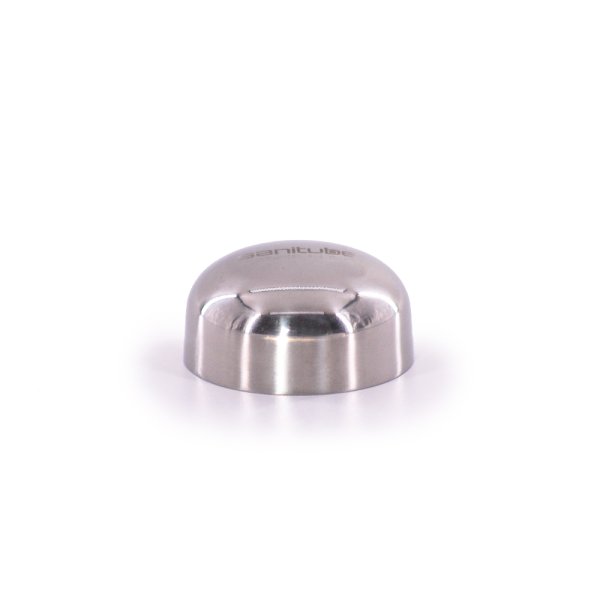

Sanitary Stainless Steel Butt Weld Dome End Cap – 304 & 316L, 3-A Certified

The Sanitary Stainless Steel Butt Weld Dome End Cap is designed to provide a secure, hygienic seal for process lines in food, beverage, and pharmaceutical applications. Manufactured from durable 304 or 316L stainless steel, this end cap meets 3-A Sanitary Standards with a minimum surface finish of 32 RA to ensure cleanability and product integrity. Each unit is clearly stamped with heat lot numbers for full traceability and quality assurance. Ideal for systems requiring a smooth, crevice-free closure, this dome end cap is a reliable solution for maintaining sanitary conditions in critical processing environments.

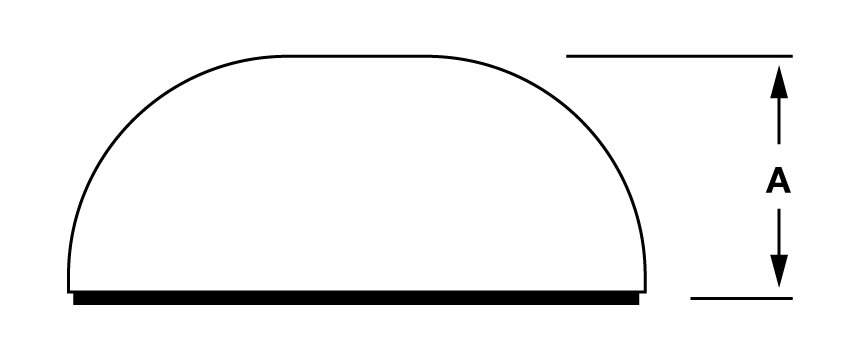

Size
(Tube OD)		 Part Number Dimensions
304 316L A
1   “ 16W4P-100 16W6P-100 0.375
1-1/2″ 16W4P-150 16W6P-150 0.562
2   “ 16W4P-200 16W6P-200 0.750
2-1/2″ 16W4P-250 16W6P-250 1.000
3   “ 16W4P-300 16W6P-300 1.250
4   “ 16W4P-400 16W6P-400 1.500
6   “ 16W4P-600 16W6P-600 1.875
8   “ — 16W6P-800 2.688
Grade

,

Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8"

316L Parts

Size DuvaSanitary.com Steel & O’Brien Dixon BFO Wayland VNE
16W 16W B16W BF616W 16W E16W
316L 316L 316L 316L 316L 316L
1/2″ 16W6P-050 16W-.50-7-316 B16W-R50 BF616W-50-7 W616W-.50-7 E16W-6L1.0
3/4″ 16W6P-075 16W-.75-7-316 B16W-R75 BF616W-75-7 W616W-.75-7 E16W-6L1.5
1″ 16W6P-100 16W-1-7-316 B16W-R100 BF616W-1-7 W616W-1-7 E16W-6L2.0
1-1/2″ 16W6P-150 16W-1.5-7-316 B16W-R150 BF616W-15-7 W616W-15-7 E16W-6L2.5
2″ 16W6P-200 16W-2-7-316 B16W-R200 BF616W-2-7 W616W-2-7 E16W-6L3.0
2-1/2″ 16W6P-250 16W-2.5-7-316 B16W-R250 BF616W-25-7 W616W-25-7 E16W-6L4.0
3″ 16W6P-300 16W-3-7-316 B16W-R300 BF616W-3-7 W616W-3-7 E16W-6L6.0
4″ 16W6P-400 16W-4-7-316 B16W-R400 BF616W-4-7 W616W-4-7
6″ 16W6P-600 16W-6-7-316 B16W-R600 BF616W-6-7 W616W-6-7
8″ 16W6P-800 16W-8-7-316 B16W-R800 BF616W-8-7 W616W-8-7
10″ 16W6P-1000 16W-10-7-316 BF616W-10-7 W616W-10-7
12″ 16W6P-1200 16W-12-7-316 BF616W-12-7 W616W-12-7



304 Parts

Size DuvaSanitary.com Steel & O’Brien Dixon BFO Wayland VNE
16W 16W B16W BF616W 16W E16W
304 304 304 304 304 304
1″ 16W4P-100 16W-1-7-304 B16W-G100 E16W1.0
1-1/2″ 16W4P-150 16W-1.5-7-304 B16W-G150 E16W1.5
2″ 16W4P-200 16W-2-7-304 B16W-G200 E16W2.2
2-1/2″ 16W4P-250 16W-2.5-7-304 B16W-G250 E16W2.5
3″ 16W4P-300 16W-3-7-304 B16W-G300 E16W3.0
4″ 16W4P-400 16W-4-7-304 B16W-G400 E16W4.0
6″ 16W4P-600 16W-6-7-304 B16W-G600
8″ 16W4P-800 16W-8-7-304 B16W-G800
