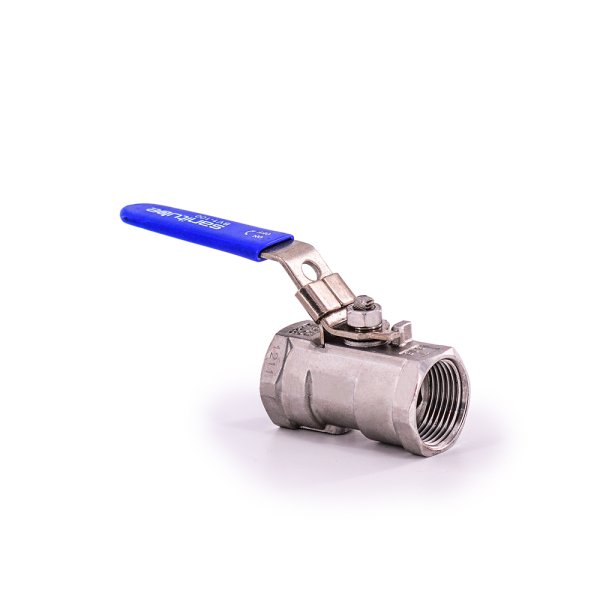

One-Piece Threaded Ball Valve

One-Piece Threaded Ball Valve – Stainless Steel – BV1

Price range: $13.20 through $79.85

  • One-Piece 316SS Construction
  • Working Temperature Range: -4°F to 392°F
  • Working Pressure: 1000 PSI WOG
  • Reduced Port
  • Investment Casting
  • Blowout Proof Stem
  • Anti-Static Locking Device
  • ASTM B1.20.1 Thread Type (NPT)

The One-Piece Threaded Ball Valve is quarter-turn valve which uses a hollow, pivoting 316 stainless ball to control flow through the process line. The valve is open when the ball’s hole is in line with the flow, and closed when it is pivoted 90° by the valve handle. The valve is threaded in place.

Product Specifications
SKU: BV1 Categories: ,
Size
(NPS)		 Part Number Dimensions
D L W H
1/4″ BV1-025 0.200 1.540 2.800 1.300
3/8″ BV1-0375 0.280 1.730 3.580 1.380
1/2″ BV1-050 0.360 2.170 3.740 1.570
3/4″ BV1-075 0.490 2.320 3.740 1.730
1   “ BV1-100 0.590 2.720 4.450 1.970
1-1/4″ BV1-125 0.790 3.030 4.450 2.240
1-1/2″ BV1-150 0.980 3.190 5.550 2.520
2   “ BV1-200 1.260 3.820 5.550 2.680
Size (NPS)

, , , , , , ,
