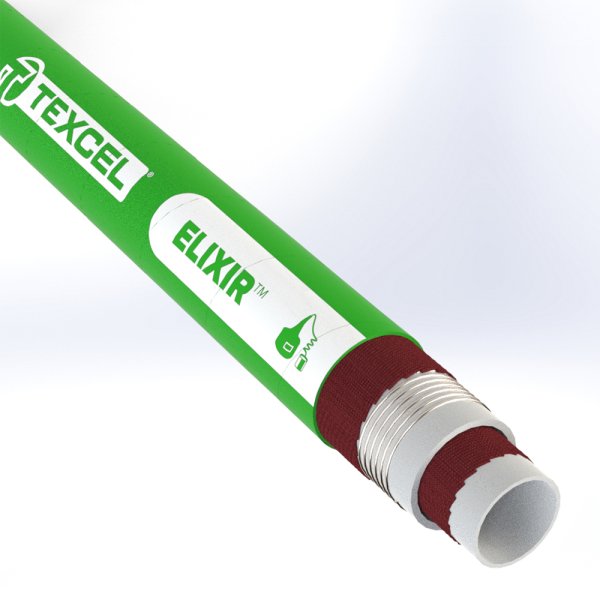

Elixir™ Distillery Hose
- Tube: Clear UHMWPE
- Cover: Green EPDM
- Reinforcement: High Strength Synthetic Plies with Steel Wire Spirals
- Safety Factor: 3:1
- Pressure Rating: 150 PSI
- Temperature Range: -4°F to 230°F
- Sterilization at 230°F for 30 Minutes
- FDA / USDA Compliant
- Comes Assembled with Sanitary Grade Tri-Clamp Crimp Ferrules
- Custom Lengths Available Upon Request
- Available Without Clamp Ends Upon Request
- CUSTOM PRODUCT – NO RETURNS
ELIXIR™ Distillery Hose is specially formulated for the suction and delivery of alcohols up to 96%, wine, beer, potable water, and other related foodstuffs. The ELIXIR™ hose has a clear, UHMWPE tube to ensure food quality, is odorless and does not alter taste.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
