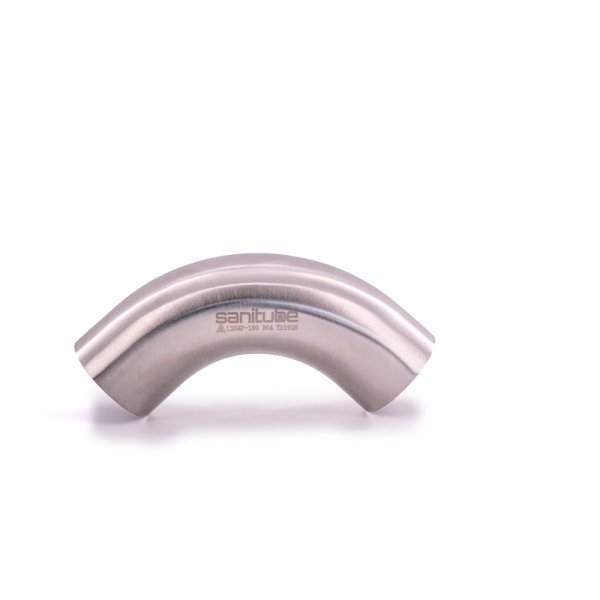

Butt Weld 90° Elbow with Tangents

Butt Weld 90° Elbow with Tangents

  • Available in 304 and 316L
  • 3-A Sanitary Standard

Butt Weld 90° Elbows with Tangents turn a process line at a 90° angle and permanently connect to the process line via weld. The long tangents provide extra space for welding in place.

SKU:L2S
Clear

Size
    (Tube OD)
Part Number   Dimensions
304 316L A R Wall
1/2" -- L2S6P-050 3.000 1.125 0.065
3/4" -- L2S6P-075 3.000 1.125 0.065
1   " L2S4P-100 L2S6P-100 2.062 1.500 0.065
1-1/2" L2S4P-150 L2S6P-150 2.937 2.250 0.065
2   " L2S4P-200 L2S6P-200 4.062 3.000 0.065
2-1/2" L2S4P-250 L2S6P-250 5.187 3.750 0.065
3   " L2S4P-300 L2S6P-300 6.312 4.500 0.065
4   " L2S4P-400 L2S6P-400 8.312 6.000 0.083
6   " L2S4P-600 L2S6P-600 11.500 9.000 0.109
