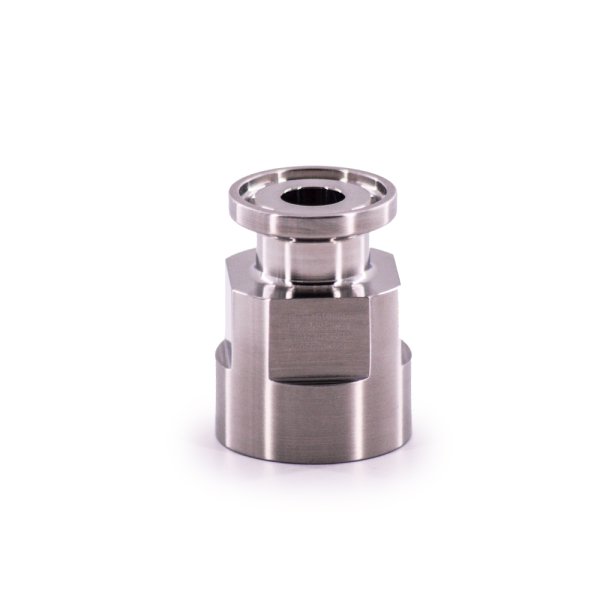

BioPharm Tri-Clamp x Female NPT Adapter
- Available in 316L
- 3-A Sanitary Standard
- SF1 – PL Finish (32RA OD / 20RA ID)
Tri-Clamp x Female NPT Adapters are used to connect a Tube OD Tri-Clamp fitting to pipe via thread.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
