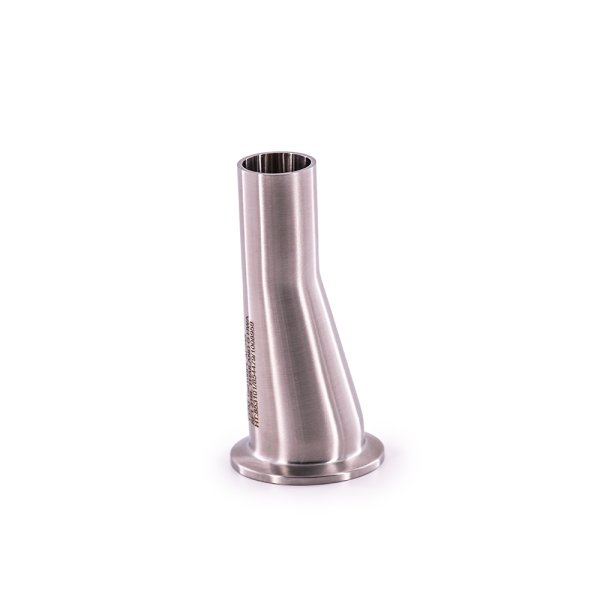

BioPharm Tri-Clamp x Butt Weld Eccentric Reducer – Stainless Steel – T32M
Price range: $35.40 through $467.80
- Available in 316L
- 3-A Sanitary Standard
- SF1 – PL Finish (32RA OD / 20RA ID)
- SF4 – PM Finish (32RA OD / 15RA ID)
- ASME BPE 2012 DT-10.1
BioPharm Tri-Clamp x Butt Weld Eccentric Reducers connect process lines of different diameters with the center lines being offset. Connection is secured via clamp and weld. Tangent dimensions meet all orbital welding specifications.
| Finish | |
|---|---|
| Size (Tube OD) | 3/4" X 1/2", 1" x 1/2", 1" x 3/4", 1-1/2" x 1/2", 1-1/2" x 3/4", 1-1/2" x 1", 2" x 1/2", 2" x 3/4", 2" x 1", 2" x 1-1/2", 2-1/2" X 1/2", 2-1/2" X 3/4", 2-1/2" x 1", 2-1/2" x 1-1/2", 2-1/2" x 2", 3" x 1", 3" x 1-1/2", 3" x 2", 3" x 2-1/2", 4" x 1", 4" x 1-1/2", 4" x 2", 4" x 2-1/2", 4" x 3", 6" x 3", 6" x 4" |
