BioPharm Tri-Clamp x Butt Weld 90° Elbow
- Available in 316L
- 3-A Sanitary Standard
- SF1 – PL Finish (32RA OD / 20RA ID)
- SF4 – PM Finish (32RA OD / 15RA ID)
- ASME BPE 2012 DT-10.1

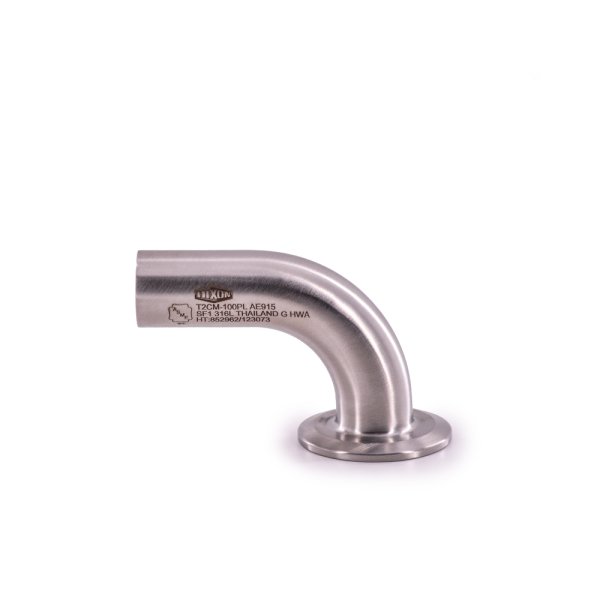

BioPharm Tri-Clamp x Butt Weld 90° Elbows turn a process line at a 90° angle and connect to the process line via Tri-Clamp and weld. Tangent dimensions meet all orbital welding specifications.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
You may also like…

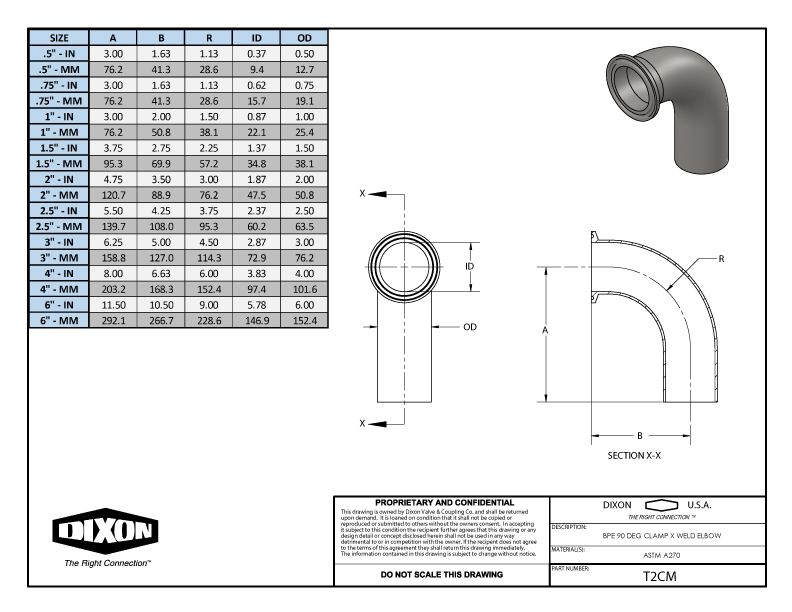

| Size (Tube OD) | Dimensions | ||||
| A | B | R | ID | OD | |
| 1/2" | 3.00 | 1.63 | 1.13 | 0.37 | 0.50 |
| 3/4" | 3.00 | 1.63 | 1.13 | 0.62 | 0.75 |
| 1" | 3.00 | 2.00 | 1.50 | 0.87 | 1.00 |
| 1 1/2" | 3.75 | 2.75 | 2.25 | 1.37 | 1.50 |
| 2" | 4.75 | 3.50 | 3.00 | 1.87 | 2.00 |
| 2 1/2" | 5.50 | 4.25 | 3.75 | 2.37 | 2.50 |
| 3" | 6.25 | 5.00 | 4.50 | 2.87 | 3.00 |
| 4" | 8.00 | 6.63 | 6.00 | 3.83 | 4.00 |
| 6" | 11.50 | 10.50 | 9.00 | 5.78 | 6.00 |
