BioPharm Tri-Clamp x Butt Weld 45° Elbow – Stainless Steel – T2KM
Price range: $36.60 through $219.30
- Available in 316L
- 3-A Sanitary Standard
- SF1 – PL Finish (32RA OD / 20RA ID)
- SF4 – PM Finish (32RA OD / 15RA ID)
- ASME BPE 2012 DT-10.1

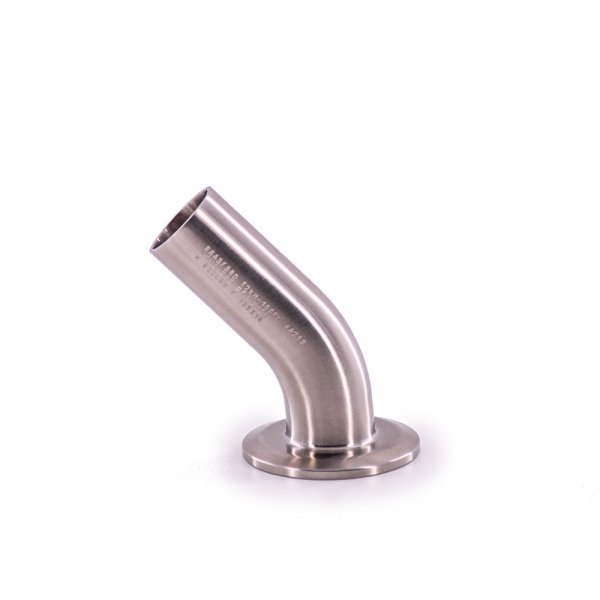

BioPharm Tri-Clamp x Butt Weld 45° Elbows turn a process line at a 45° angle and connect to the process line via Tri-Clamp and weld. Tangent dimensions meet all orbital welding specifications.
| Size (Tube OD) | Dimensions | ||||
| A | B | R | OD | ID | |
| 1/2″ | 2.25 | 1.00 | 1.13 | 0.50 | 0.37 |
| 3/4″ | 2.25 | 1.00 | 1.13 | 0.75 | 0.62 |
| 1″ | 2.25 | 1.13 | 1.50 | 1.00 | 0.87 |
| 1 1/2″ | 2.50 | 1.44 | 2.25 | 1.50 | 1.37 |
| 2″ | 3.00 | 1.75 | 3.00 | 2.00 | 1.87 |
| 2 1/2″ | 3.38 | 2.06 | 3.75 | 2.50 | 2.37 |
| 3″ | 3.63 | 2.38 | 4.50 | 3.00 | 2.87 |
| 4″ | 4.50 | 3.13 | 6.00 | 4.00 | 3.83 |
| 6″ | 6.25 | 5.25 | 9.00 | 6.00 | 5.78 |
| Finish | |
|---|---|
| Size (Tube OD) | 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4" |
