BioPharm Tri-Clamp 90° Elbow
- Available in 316L
- 3-A Sanitary Standard
- SF1 – PL Finish (32RA OD / 20RA ID)
- SF4 – PM Finish (32RA OD / 15RA ID)
- ASME BPE 2012 DT-10.1

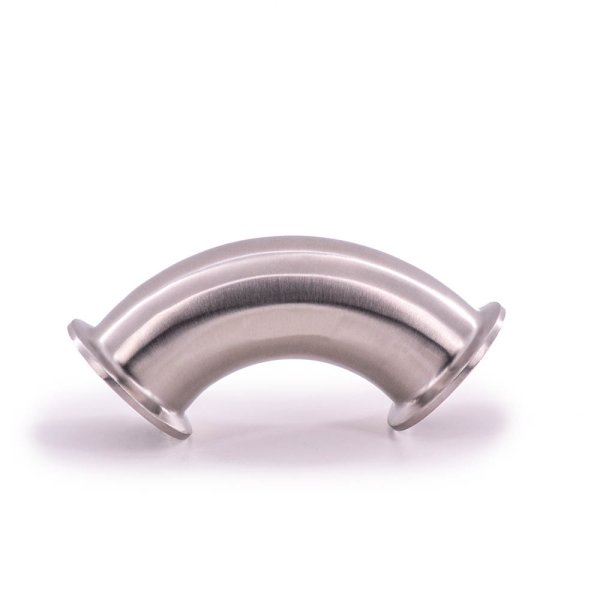

BioPharm Tri-Clamp 90° Elbows turn a process line at a 90° angle and connect to the process line via Tri-Clamp.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |

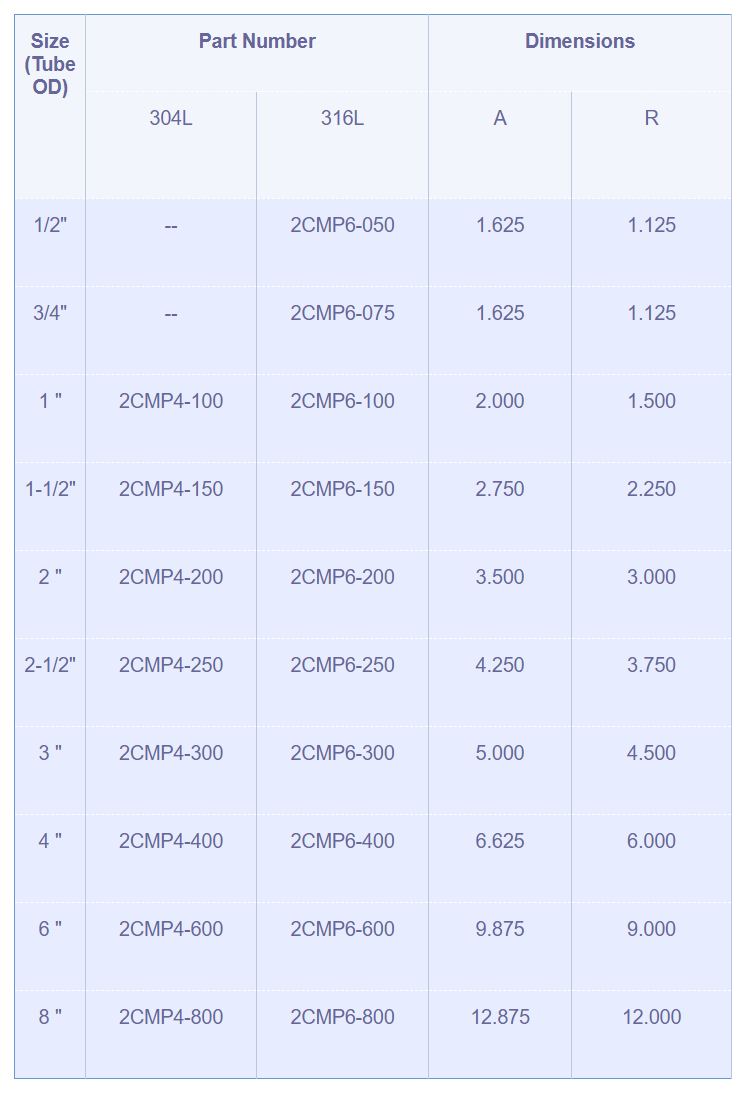

Tri-Clamp Fitting Guide
| Size (Tube OD) | Dimensions | |
| A | R | |
| 1/2" | 1.625 | 1.125 |
| 3/4" | 1.625 | 1.125 |
| 1" | 2 | 1.5 |
| 1 1/2" | 2.75 | 2.25 |
| 2" | 3.5 | 3 |
| 2 1/2" | 4.25 | 3.75 |
| 3" | 5 | 4.5 |
| 4" | 6.625 | 6 |
| 6" | 9.875 | 9 |
