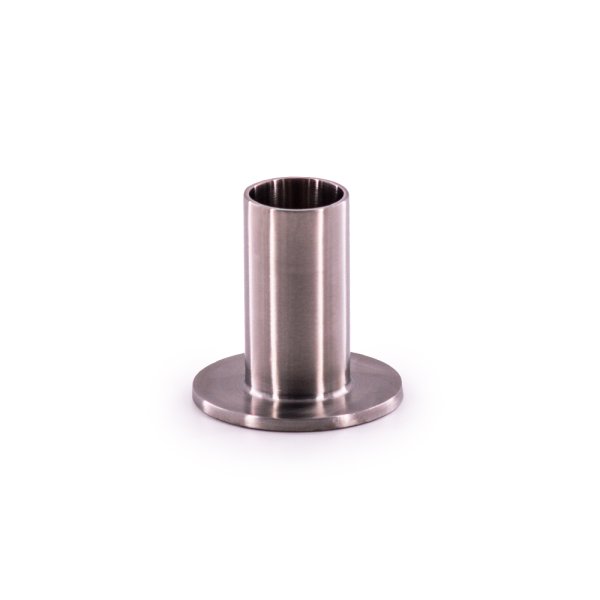

BioPharm Stub End – Stainless Steel – T14VB

Price range: $48.60 through $321.20

  • Available in 316L
  • 3-A Sanitary Standard
  • SF1 – PL Finish (32RA OD / 20RA ID)
  • ASME BPE 2012 DT-10.1

Type A (VB) Stub Ends are welded to a tube end and secured with a tube slip-on flange. When used in place of a weld neck flange, the installation process time can be decreased as the slip-on flange can be rotated to facilitate easy alignment of flange bolt holes.

Product Specifications
SKU: T14VB Categories: ,
Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 3", 4", 6"
