BioPharm Butt Weld 92° Elbow

BioPharm Butt Weld 88° Elbow

  •  Available in 316L
  • 3-A Sanitary Standard
  • SF1 – PL Finish (32RA OD / 20RA ID)
  • SF4 – PM Finish (32RA OD / 15RA ID)
  • ASME BPE 2012 DT-10.1

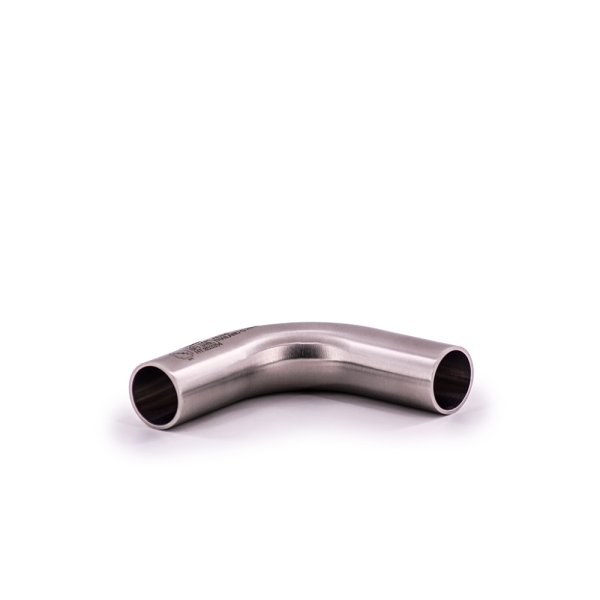

BioPharm Butt Weld 88° Elbows turn a process line at a 88° angle and permanently connect to the process line via weld. Tangent dimensions meet all orbital welding specifications.

SKU:T2S88

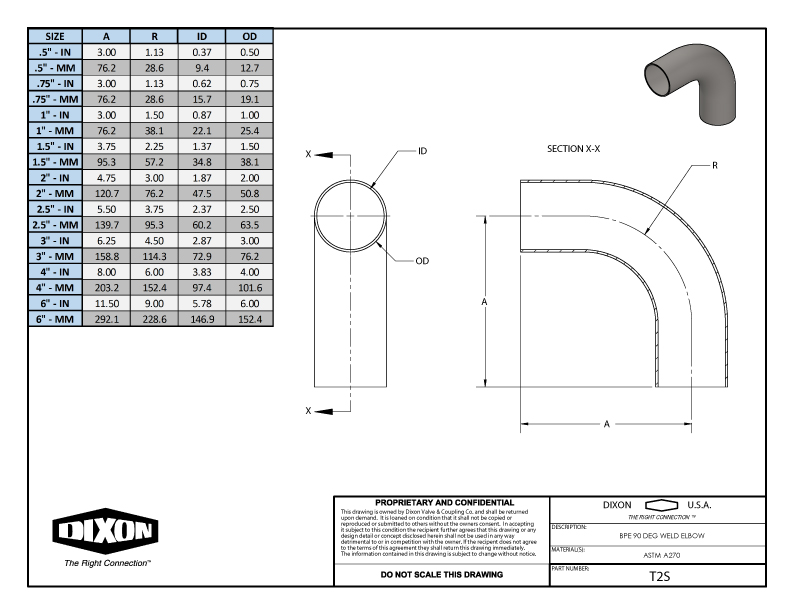

Size (Tube OD) Dimensions
L R OD WT
1/2" 1.94 1.06 0.50 0.065
3/4" 1.98 1.02 0.75 0.065
1" 1.50 1.50 1.00 0.065
1 1/2" 1.50 2.25 1.50 0.065
2" 1.75 3.00 2.00 0.065
2 1/2" 1.75 3.75 2.50 0.065
3" 1.75 4.50 3.00 0.065
4" 2.00 6.00 4.00 0.083
