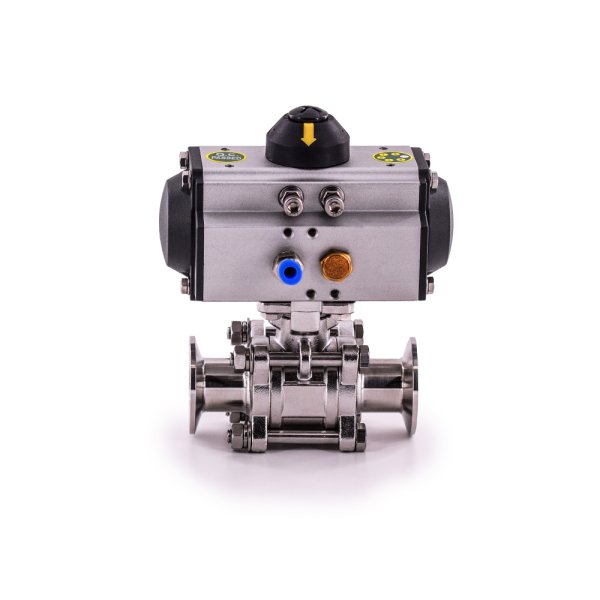

Actuated Three-Piece Encapsulated Tri-Clamp Ball Valve

Actuated Three-Piece Encapsulated Tri-Clamp Ball Valve – Stainless Steel – TCBVS-SR

Price range: $485.40 through $3,862.15

  • Three-Piece 316SS Construction
  • 3-A Sanitary Standard
  • Working Temperature Range: -4°F to 392°F
  • Clamp End Working Pressure: 200 PSI WOG
  • Body Working Pressure: 1000 PSI WOG
  • Fully Encapsulated
  • Investment Casting
  • Blowout Proof Stem
  • Minimum Supply Air Line Pressure: 80 PSI
  • ISO 5211 Mounting Pad
  • Full Port Design

Actuated Ball Valves are opened and closed mechanically, allowing the valve to be adjusted remotely. For large valves, actuation makes it easier to quickly turn the ball.

Product Specifications
SKU: TCBVS-SR Categories: ,
This actuated ball valve is constructed from 316 stainless steel and meets 3-A sanitary standards. It operates within a temperature range of -4°F to 392°F, with a clamp end working pressure of 200 PSI WOG and a body working pressure of 1000 PSI WOG. The fully encapsulated design and blowout-proof stem ensure safety and reliability, while the ISO 5211 mounting pad facilitates easy actuation.
Size
(Tube OD)		 Part Number Dimensions Torque (in/lb) Weight (lbs)
A B C Breakaway Action
1/2″ TCBVS-050 0.380 5.560 3.750 55 20 1.4
3/4″ TCBVS-075 0.620 5.560 4.135 71 32 1.8
1″ TCBVS-100 0.870 5.560 4.135 101 58 2.6
1-1/2″ TCBVS-150 1.370 7.410 4.920 221 115 4.6
2″ TCBVS-200 1.880 7.410 5.905 345 115 8.5
2-1/2″ TCBVS-250 2.370 10.240 7.500 883 288 17.8
3″ TCBVS-300 2.870 10.240 8.660 830 230 28.2
4″ TCBVS-400 12.000 3.840 9.512 1323 345 41.4



Component Description Material
1 Body T316 Stainless Steel
2 Cap T316 Stainless Steel
3 Ball T316 Stainless Steel
4 Seat PTFE
5 Seal PTFE
6 Thrust Washer PTFE
7 Stem Packing PTFE
8 Gland Nut T304 Stainless Steel
9 Spring Washer T304 Stainless Steel
10 Stem Nut T304 Stainless Steel
11 Stem T316 Stainless Steel
12 Spring Washer T304 Stainless Steel
13 Nut T304 Stainless Steel
14 Bolt T304 Stainless Steel
15 Handle T304 Stainless Steel
16 Handle Sleeve PVC
17 Locking Device T304 Stainless Steel
Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4"
