Sanitary flanges play a critical role in the food, beverage, pharmaceutical, and other industries where hygiene is essential. They enable safe, reliable connections in sanitary piping systems while maintaining the cleanliness standards necessary in these sectors. But with so many types, materials, and standards to consider, selecting the right sanitary flange can be challenging. This guide will cover everything you need to know about sanitary flanges to ensure you choose the best option for your specific application.
What is a Sanitary Flange?
A sanitary flange is a component used to connect sections of pipes or tubes in a way that maintains sanitary conditions. These flanges are designed to be easily cleaned, inspected, and sanitized, making them ideal for industries that handle sensitive products, such as food, dairy, cosmetics, and pharmaceuticals.
Types of Sanitary Flanges
Several types of sanitary flanges are commonly used, each with unique applications and benefits:

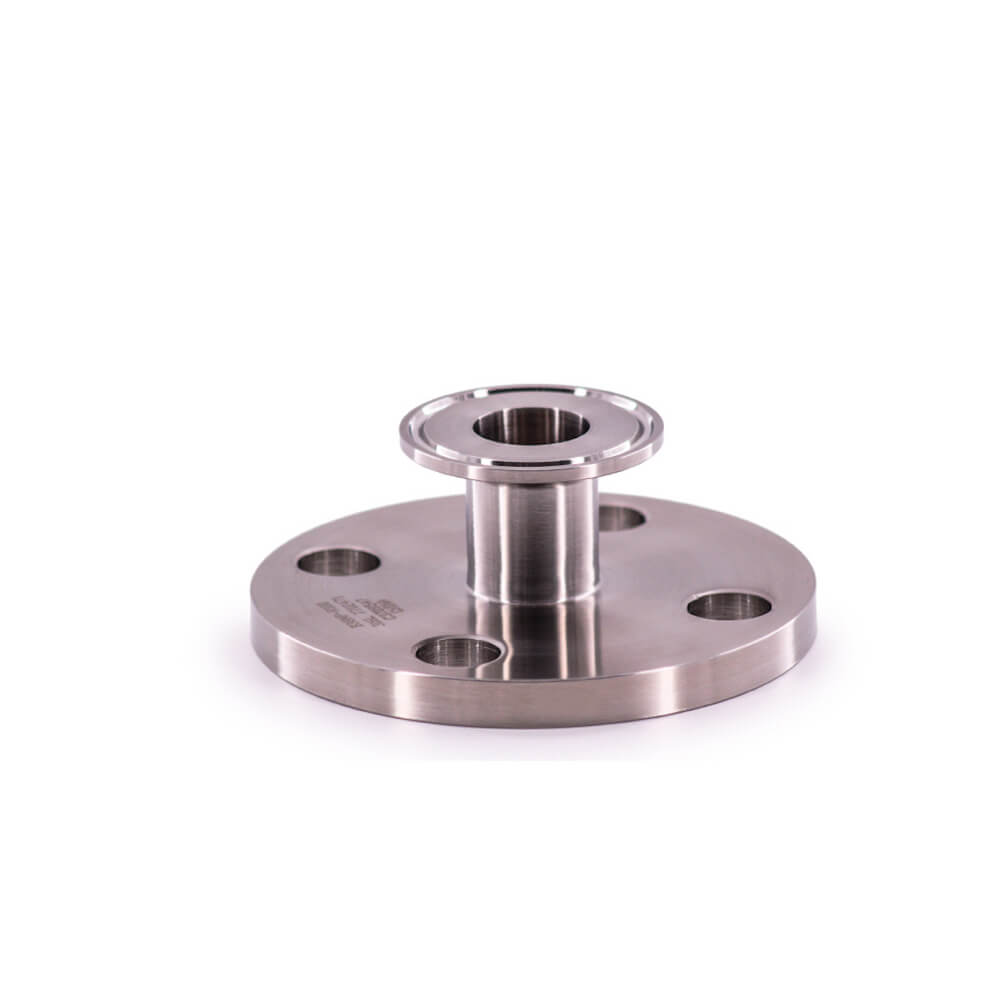

- Tri-Clamp Flanges:
Tri-Clamp, or Tri-Clover flanges, are among the most popular choices in sanitary applications. They are easy to install and disassemble, making them ideal for systems requiring frequent cleaning. - Welded Flanges:
Welded sanitary flanges provide a permanent and leak-proof connection. They’re commonly used in systems where connections don’t need to be altered frequently and are favored for their strength and durability. - Threaded Flanges:
Threaded flanges are ideal for applications where welding might be impractical. They can be quickly installed without welding, providing flexibility in certain sanitary piping systems. - Blind Flanges:
Blind flanges close off the end of a piping system. These are particularly useful for maintenance, as they allow parts of the system to be isolated without compromising sanitary conditions.
Key Materials for Sanitary Flanges
Selecting the right material is crucial for maintaining hygiene, durability, and corrosion resistance. Here are some commonly used materials:
- Stainless Steel (304 & 316):
Stainless steel is the most common material for sanitary flanges due to its corrosion resistance and ease of cleaning. Type 316 stainless steel is preferred in harsher environments, as it offers higher corrosion resistance than 304. - Hastelloy:
For extremely corrosive environments, Hastelloy is an excellent choice. It is often used in pharmaceutical applications where chemicals may be present. - Polymers (e.g., PTFE):
PTFE and other polymers are used in specific applications where chemical resistance is necessary. These materials are suitable for sealing and gaskets rather than the main body of the flange.
Choosing the Right Sanitary Flange for Your Application
When selecting a sanitary flange, consider the following factors:
- Pressure and Temperature Ratings:
Ensure the flange meets the pressure and temperature demands of your application. Some materials and types may handle higher pressures or temperatures better than others. - Corrosion Resistance:
In applications where corrosive substances are involved, select a material that can withstand these conditions without degrading over time. - Ease of Maintenance:
Consider whether the flange needs to be disassembled frequently for cleaning. Tri-Clamp flanges, for example, are popular in settings where frequent maintenance is required.
Installation and Maintenance Tips
Proper installation and regular maintenance are essential for maximizing the lifespan and performance of a sanitary flange:
- Ensure Correct Alignment:
Proper alignment prevents stress on the piping system and reduces the risk of leaks. - Use Suitable Gaskets:
Choosing the right gasket material is critical. Silicone and EPDM are popular options in sanitary applications, but ensure they are compatible with your process materials. - Regular Inspections:
Conduct routine inspections to check for any signs of wear, such as corrosion or damage to seals. Regular maintenance is essential to ensure a sanitary environment.
Why Choosing the Right Sanitary Flange Matters
Using the correct sanitary flange is essential for preserving hygiene, preventing contamination, and ensuring compliance with regulatory standards. A properly selected flange minimizes the risk of bacterial growth and supports the efficient operation of sanitary systems, protecting both product quality and the health of consumers.
Conclusion
Sanitary flanges are indispensable for industries requiring the highest cleanliness standards. By understanding the various types, materials, and specific applications, you can make an informed decision that will keep your sanitary system operating safely and efficiently. Choose the right sanitary flange to ensure compliance, maintain quality, and protect your products and processes.
