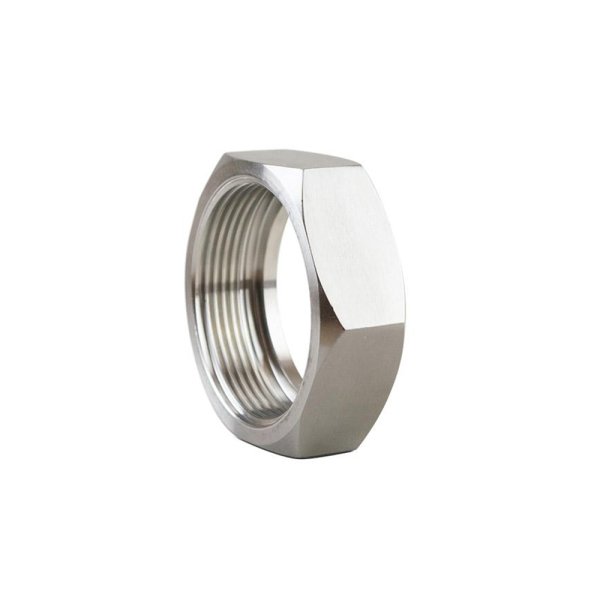

Union Hexagonal Nut

Union Hexagonal Nut – Stainless Steel – 13H

Price range: $9.95 through $52.90

  • Sanitary Stainless Union Hexagonal Nut
  • Available in 304 Stainless Steel
  • Used to Secure Threaded Bevel Seat Ferrules
  • Ideal for Food & Beverage and Pharmaceutical Markets
  • 400 PSI Maximum Tolerance
Product Specifications
SKU: 13H Categories: ,

Sanitary Stainless Union Hex Nut – 304 SS, High-Pressure Rated

Crafted from durable 304 stainless steel, this Sanitary Union Hexagonal Nut is designed to securely fasten threaded bevel seat ferrules in high-performance sanitary systems. With a maximum pressure tolerance of 400 PSI, it’s an ideal choice for demanding applications in the food & beverage and pharmaceutical industries. Engineered for reliability, this nut ensures a tight, hygienic seal in critical processing environments.
Size
(Tube OD)		 Part Number Dimensions
A B
1″ 13H-100 0.906 1.812
1-1/2″ 13H-150 0.968 2.406
2″ 13H-200 1.062 3.000
2-1/2″ 13H-250 1.187 3.594
3″ 13H-300 1.281 4.188
4″ 13H-400 1.500 5.438
Weight N/A
Size (Tube OD)

1", 1-1/2", 2", 2-1/2", 3", 4"
DuvaSanitary.com Steel & O’Brien Dixon Sanitary Solutions Wayland VNE
13H 13H 13H SS13H 13H 13H
304 304 304 304 304 304
1″ 13H-16 13H-1-304 13H-G100 SS13H-1-304 W413H-1 13H1.0
1-1/2″ 13H-24 13H-1.5-304 13H-G150 SS13H-1.5-304 W413H-15 13H1.5
2″ 13H-32 13H-2-304 13H-G200 SS13H-2-304 W413H-2 13H2.0
2-1/2″ 13H-40 13H-2.5-304 13H-G250 SS13H-2.5-304 W413H-25 13H2.5
3″ 13H-48 13H-3-304 13H-G300 SS13H-3-304 W413H-3 13H3.0
4″ 13H-64 13H-4-304 13H-G400 SS13H-4-304 W413H-4 13H4.0
