A40MPG

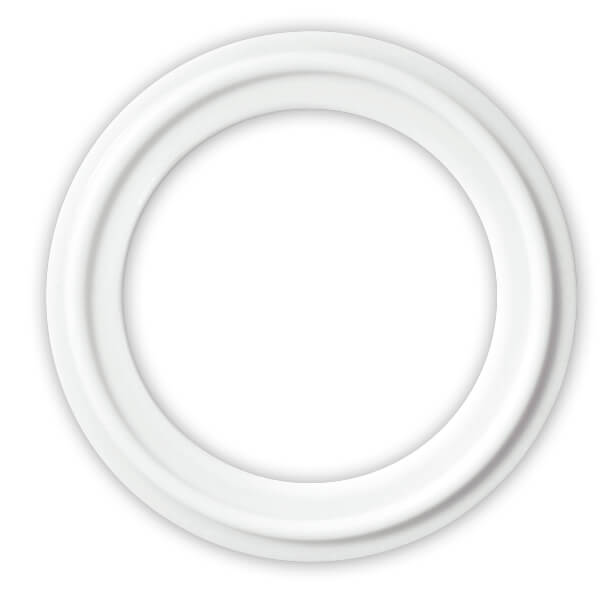

Tri-Clamp Envelope Gasket – Type III – A40MPG

Price range: $3.00 through $152.70

  • Sanitary gaskets with a Teflon® (PTFE) outer shell, and either EPDM or Viton® (FKM) Inserts
  • PTFE outer surface provides chemical resistance with less cold flow and greater flexibility
  • FDA, USP Class VI
  • Teflon® – Also known as PTFE, these chemically resistant plastic gaskets are unaffected by most corrosive liquids and gasses from -400° to 500°F
  • EPDM – A very stable rubber-like gasket that resists heat, oxidation and aging, with flexibility at low temperatures. Working range is -60° to 300°F
  • Viton® – Rubber gaskets providing indefinite seal from 5° to 400°F, and an excellent seal at 600°F up to 48 hours
  • Refer to Compound Selection Guide for suitable applications
Material Specs & Statements
SKU: A40MPG Categories: , ,

Tri-Clamp Envelope Gasket – Type III A40MPG | Sanitary PTFE with EPDM or Viton® Inserts

The Tri-Clamp Envelope Gasket – Type III A40MPG is engineered for demanding sanitary applications where durability and chemical resistance are critical. Featuring a Teflon® (PTFE) outer shell with either EPDM or Viton® (FKM) inserts, this gasket provides reliable sealing performance across a wide range of industries.
  • PTFE Outer Shell: Offers superior chemical resistance, reduced cold flow, and enhanced flexibility. Unaffected by most corrosive liquids and gases, with a broad operating range of -400°F to 500°F.
  • EPDM Insert: Rubber-like stability with excellent resistance to heat, oxidation, and aging. Maintains flexibility in low temperatures (-60°F to 300°F).
  • Viton® Insert: Provides long-term sealing from 5°F to 400°F, withstanding up to 600°F for 48 hours.
  • Compliance: FDA and USP Class VI certified, ensuring suitability for food, beverage, and pharmaceutical applications.
For assistance with selecting the right material, refer to the Compound Selection Guide to ensure optimal performance for your application. [tablink tab="material_specs"]Material Specs & Statements[/tablink]
40MPF-Diagram



I.D. O.D.
1/2″ 0.370 0.992
3/4″ 0.620 0.992
1″ 0.870 1.485
1-1/2″ 1.370 1.984
2″ 1.840 2.516
2-1/2″ 2.250 3.047
3″ 2.750 3.579
4″ 3.834 4.682
6″ 5.782 6.562
8″ 7.795 8.555
10″ 9.705 10.545
12″ 11.735 12.535
Material

,

Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Connection

Tri-Clamp
Gasket Type

Type III – Envelope
DuvaSanitary.com Dixon CGS
A40MPG 40MP-GR CGSA40MPG
PTFE / FKM PTFE / FKM PTFE / FKM
1/2″ A40MPGR-SFY-050 42MP-GR50 CGSA40MPGR-SFY-050
3/4″ A40MPGR-SFY-075 42MP-GR75 CGSA40MPGR-SFY-075
1″ A40MPGR-SFY-100 40MP-GR100 CGSA40MPGR-SFY-100
1-1/2″ A40MPGR-SFY-150 40MP-GR150 CGSA40MPGR-SFY-150
2″ A40MPGR-SFY-200 40MP-GR200 CGSA40MPGR-SFY-200
2-1/2″ A40MPGR-SFY-250 40MP-GR250 CGSA40MPGR-SFY-250
3″ A40MPGR-SFY-300 40MP-GR300 CGSA40MPGR-SFY-300
4″ A40MPGR-SFY-400 40MP-GR400 CGSA40MPGR-SFY-400
5″ A40MPGR-SFY-500 CGSA40MPGR-SFY-500
6″ A40MPGR-SFY-600 40MP-GR600 CGSA40MPGR-SFY-600
8″ A40MPGR-SFY-800 40MP-GR800 CGSA40MPGR-SFY-800
10″ A40MPGR-SFY-1000 CGSA40MPGR-SFY-1000
12″ A40MPGR-SFY-1200 CGSA40MPGR-SFY-1200



DuvaSanitary.com Dixon CGS
A40MPG 40MP-GR CGSA40MPG
PTFE / EPDM PTFE / EPDM PTFE / EPDM
1/2″ A40MPGR-E-050 42MP-GRE50 CGSA40MPGR-E-050
3/4″ A40MPGR-E-075 42MP-GRE75 CGSA40MPGR-E-075
1″ A40MPGR-E-100 40MP-GRE100 CGSA40MPGR-E-100
1-1/2″ A40MPGR-E-150 40MP-GRE150 CGSA40MPGR-E-150
2″ A40MPGR-E-200 40MP-GRE200 CGSA40MPGR-E-200
2-1/2″ A40MPGR-E-250 40MP-GRE250 CGSA40MPGR-E-250
3″ A40MPGR-E-300 40MP-GRE300 CGSA40MPGR-E-300
4″ A40MPGR-E-400 40MP-GRE400 CGSA40MPGR-E-400
5″ A40MPGR-E-500 CGSA40MPGR-E-500
6″ A40MPGR-E-600 40MP-GRE600 CGSA40MPGR-E-600
8″ A40MPGR-E-800 40MP-GRE800 CGSA40MPGR-E-800
10″ A40MPGR-E-1000 CGSA40MPGR-E-1000
12″ A40MPGR-E-1200 CGSA40MPGR-E-1200

Material Specs

Statements
