Tri-Clamp Butterfly Valve with Metal Trigger Handle – Stainless Steel – BFY-316L
Price range: $181.50 through $3,229.88
- 316 Stainless Steel Body
- Surface finish 25 Ra meets 3-A, FDA & USDA standards
- 316L mirror finish disc provides an even flow preventing obstructions and restrictions
- Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing
- Bolting is flush with body surface (½”–6″)
- FDA approved available options: Silicone, EPDM and VITON®
- Multi-position, 304SS, spring loaded lock handle
- Suitable for actuation with pneumatic, electric, or canister actuators
- 110 PSI @ 200˚F (Approx. 95˚C)
- Not recommended for vacuum
This top-quality Butterfly Valve has a 316L stainless steel disc mounted on a rod. The valve is fully open when the metal trigger handle is turned and the disc is rotated a quarter turn, allowing unrestricted flow. When the valve is closed, the handle is turned so the disc completely blocks the passageway.
Featuring a 316 stainless steel body with a surface finish of 25 Ra, this valve meets 3-A, FDA, and USDA standards. The 316L mirror-finish disc ensures even flow, preventing obstructions. The opposing body bolt design prevents loosening due to vibration, and the multi-position 304 stainless steel spring-loaded lock handle allows for precise control. It operates at 110 PSI at 200°F and is suitable for actuation with pneumatic, electric, or canister actuators.

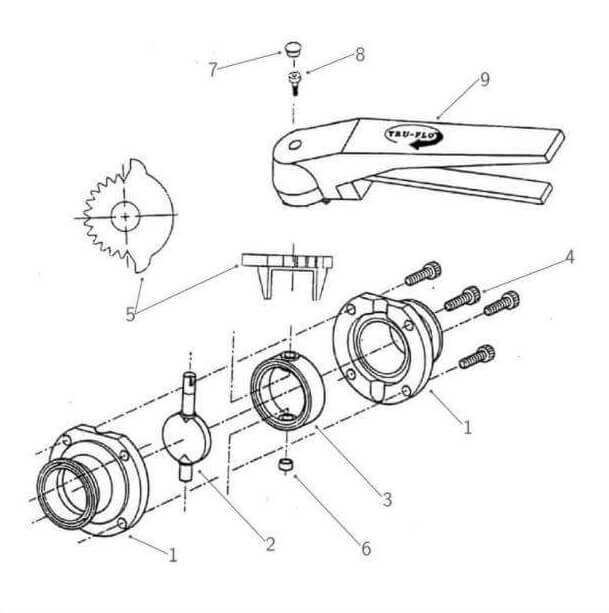

| Item | ||
| Part (Qty) | Material | |
| 1 | Body Half (2) | 316L |
| 2 | Disc | 316L |
| 3 | Seal | Silicone/EDPM/VITON ® |
| 4 | Body Bols (4) | 304 SS |
| 5 | Notch Plate | 316 SS |
| 6 | Body Cap | BUNA-N |
| 7 | Handle Cap | BUNA-N |
| 8 | Handle | 304 SS |
| 9 | 13-Position Handle | 304 SS |
| Size | |||||
| A | B | C | D | L | |
| 1/2 | 0.38 | 1.00 | 1.75 | 3.10 | 2.16 |
| 3/4 | 0.62 | 1.00 | 1.75 | 3.10 | 2.16 |
| 1 | 0.87 | 1.99 | 1.75 | 3.11 | 2.40 |
| 1 1/2 | 1.37 | 1.99 | 1.75 | 3.35 | 2.53 |
| 2 | 1.87 | 2.52 | 1.75 | 4.13 | 2.93 |
| 2 1/2 | 2.37 | 3.05 | 1.88 | 4.41 | 3.06 |
| 3 | 2.84 | 3.58 | 2.0 | 4.92 | 3.32 |
| 4 | 3.84 | 4.69 | 2.38 | 6.18 | 4.00 |
| 6 | 5.84 | 6.57 | 3.00 | 8.20 | 6.35 |
| 6-DJ | 5.84 | 6.57 | 2.87 | 8.46 | 6.36 |
| 8 | 7.78 | 8.57 | 3.25 | 11.22 | 7.83 |
| 10 | 9.70 | 10.57 | 3.28 | 13.5 | 8.95 |
| 12 | 11.70 | 12.56 | 2.87 | 13.46 | 9.09 |
