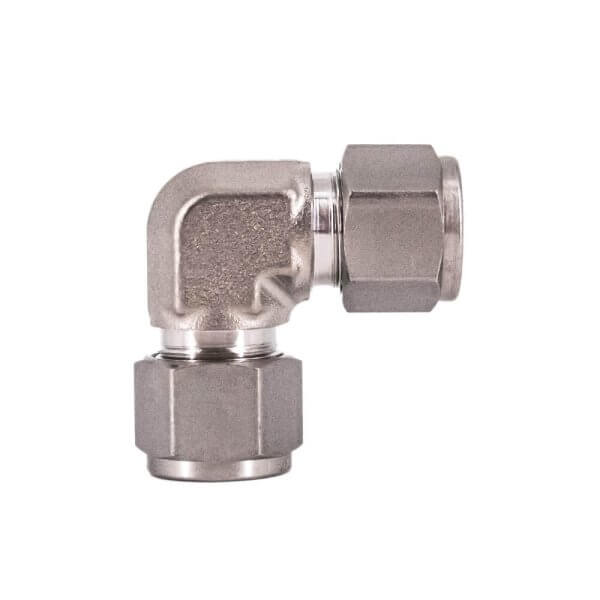

SS-9: Compression 90° 316SS Elbow
- 316 Stainless Steel Construction
- Torque-Free, Leak-Proof Seal
- Double Ferrule
- No Special Tooling Required
- Ideal for Instrumentation Application / Not Sanitary Grade
- DuvaSanitary.com Compression Fittings may be sourced from surplus
- MTRs may be available upon request
The Compression 90° 316SS Elbow connects to square-cut tubing by inserting tube into both ends of the fitting and tightening the nuts.
Tube OD (in.) |
Part Number | 1 | 3 | 4 | 5 Minimum Opening |
6 Wrench Pad |
7 Hex Flat |
8a |
1/16 | 100-9 | 0.70 | 0.43 | 0.34 | 0.05 | 3/8 | 5/16 | 0.55 |
1/8 | 200-9 | 0.88 | 0.60 | 0.50 | 0.09 | 3/8 | 7/16 | 0.62 |
3/16 | 300-9 | 1.00 | 0.63 | 0.54 | 0.12 | 1/2 | 1/2 | 0.74 |
1/4 | 400-9 | 1.06 | 0.70 | 0.60 | 0.19 | 1/2 | 9/16 | 0.77 |
5/16 | 500-9 | 1.13 | 0.73 | 0.64 | 0.25 | 9/16 | 5/8 | 0.84 |
3/8 | 600-9 | 1.20 | 0.76 | 0.66 | 0.28 | 5/8 | 11/16 | 0.91 |
1/2 | 810-9 | 1.42 | 0.86 | 0.90 | 0.41 | 13/16 | 7/8 | 1.02 |
5/8 | 1010-9 | 1.50 | 0.86 | 0.96 | 0.50 | 15/16 | 1 | 1.10 |
3/4 | 1210-9 | 1.57 | 0.86 | 0.96 | 0.62 | 1-1/16 | 1-1/8 | 1.17 |
7/8 | 1410-9 | 1.76 | 0.86 | 1.02 | 0.72 | 1-3/8 | 1-1/4 | 1.36 |
1 | 1610-9 | 1.93 | 1.04 | 1.23 | 0.88 | 1-3/8 | 1-1/2 | 1.45 |
1-1/4 | 2000-9 | 2.62 | 1.53 | 1.62 | 1.09 | 1-11/16 | 1-7/8 | 1.75 |
1-1/2 | 2400-9 | 3.07 | 1.78 | 1.97 | 1.34 | 2 | 2-1/4 | 2.00 |
2 | 3200-9 | 4.22 | 2.47 | 2.66 | 1.81 | 2-3/4 | 3 | 2.75 |
