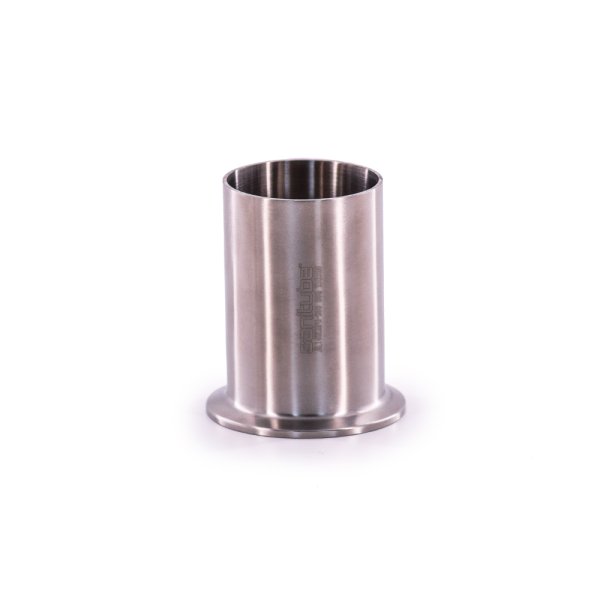

Light Duty Tank Weld Ferrule
- Available in 304 and 316L
- 3-A Sanitary Standard
Sanitary clamp ferrule used for welding to a tank.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
| Size (Tube OD) | Part Number | Dimensions | |||||
| 304L | 316L | A | B | C | |||
| 1/2" | -- | 14WLMP6-050 | 3.000 | 0.370 | 0.500 | ||
| 3/4" | -- | 14WLMP6-075 | 3.000 | 0.620 | 0.750 | ||
| 1" | 14WLMP4-100 | 14WLMP6-100 | 3.000 | 0.870 | 1.000 | ||
| 1-1/2" | 14WLMP4-150 | 14WLMP6-150 | 3.000 | 1.370 | 1.500 | ||
| 2" | 14WLMP4-200 | 14WLMP6-200 | 3.000 | 1.870 | 2.000 | ||
| 2-1/2" | 14WLMP4-250 | 14WLMP6-250 | 3.000 | 2.370 | 2.500 | ||
| 3" | 14WLMP4-300 | 14WLMP6-300 | 4.000 | 2.870 | 3.000 | ||
| 4" | 14WLMP4-400 | 14WLMP6-400 | 4.000 | 3.834 | 4.000 | ||
| 6" | 14WLMP4-600 | 14WLMP6-600 | 6.000 | 5.782 | 6.000 | ||
| 8" | 14WLMP4-800 | 14WLMP6-800 | 6.000 | 7.760 | 8.000 | ||
