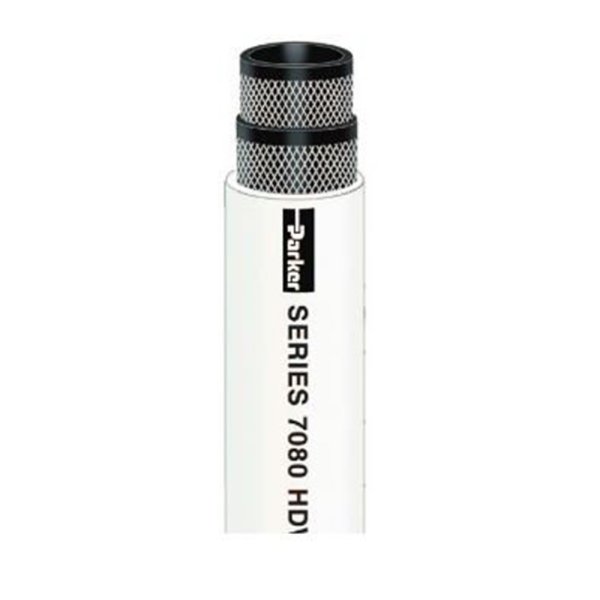

HDW™ Washdown Hose
- Tube: Black EPDM
- Cover: White EPDM with Perforated Smooth Finish
- Reinforcement: Multiple Textile Plies
- Safety Factor: 4:1
- Pressure Rating: 300 PSI
- Temperature Range: -40°F to 212°F
- Comes Assembled with Stainless Swivel Fittings
- Custom Lengths Available Upon Request
- CUSTOM PRODUCT – NO RETURNS
HDW™ Series 7080 is a heavy duty, medium pressure washdown hose designed to handle hot water and mild chemicals in cleaning and washdown applications. The hose construction incorporates multiple plies of textile reinforcement that provides flexibility, and the white, non-marking cover is resistant to abrasion, heat and ozone.
| Size | Dimensions | |
| Flange OD | Tube OD | |
| 1/2" | 0.992 | 0.500 |
| 3/4" | 0.992 | 0.750 |
| 1" | 1.984 | 1.000 |
| 1-1/2" | 1.984 | 1.500 |
| 2" | 2.516 | 2.000 |
| 2-1/2" | 3.047 | 2.500 |
| 3" | 3.579 | 3.000 |
| 4" | 4.682 | 4.000 |
| 6" | 6.562 | 6.000 |
| 8" | 8.602 | 8.000 |
| 10" | 10.570 | 10.000 |
| 12" | 12.570 | 12.000 |
Tri-Clamp Fitting Guide
