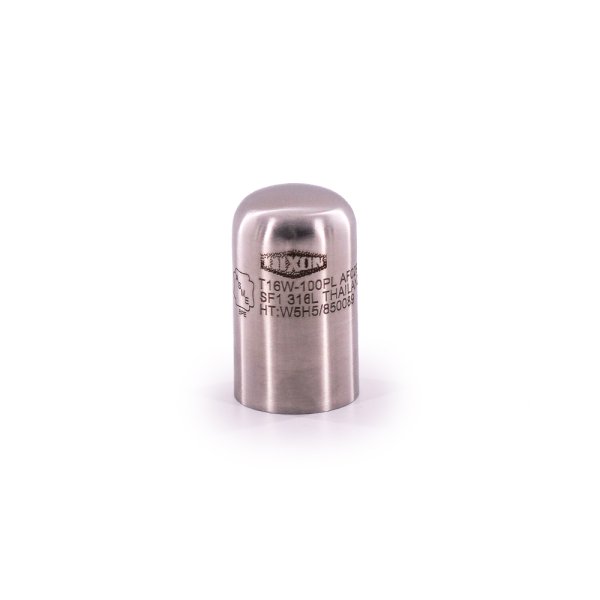

BioPharm Weld Cap
- Available in 316L
- 3-A Standard
- SF1 – PL Finish (32RA OD / 20RA ID)
- SF4 – PM Finish (32RA OD / 15RA ID)
- ASME BPE 2012 DT-10.1
BioPharm Weld Caps provide a secure closure to the end of a sanitary process line.

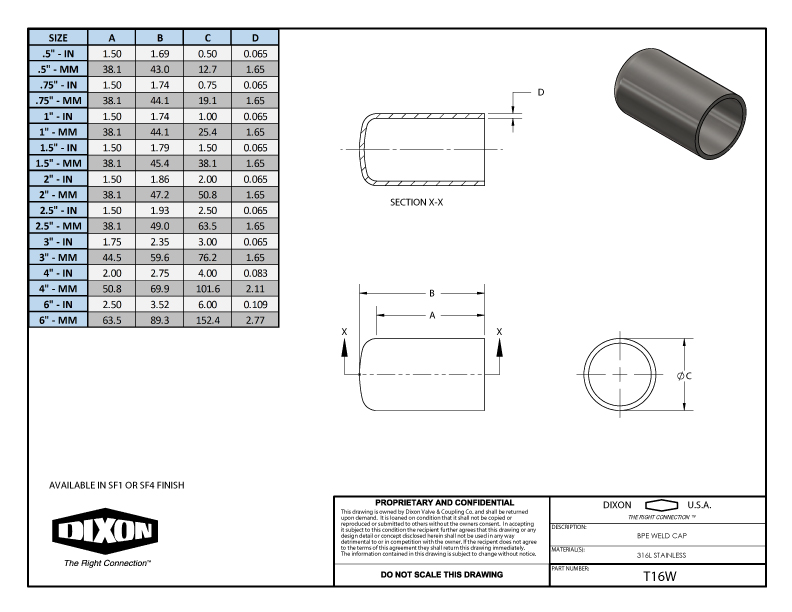

| Size (Tube OD) | Dimensions | |||
| A | B | C | D | |
| 1/2" | 1.5 | 1.69 | 0.5 | 0.065 |
| 3/4" | 1.5 | 1.74 | 0.75 | 0.065 |
| 1/2" | 1.5 | 1.69 | 0.5 | 0.065 |
| 1" | 1.5 | 1.74 | 1 | 0.065 |
| 1 1/2" | 1.5 | 1.79 | 1.5 | 0.065 |
| 2" | 1.5 | 1.86 | 2 | 0.065 |
| 2 1/2" | 1.5 | 1.93 | 2.5 | 0.065 |
| 3" | 1.75 | 2.35 | 3 | 0.065 |
| 4" | 2 | 2.75 | 4 | 0.083 |
| 6" | 2.5 | 3.52 | 6 | 0.109 |
